P. 909

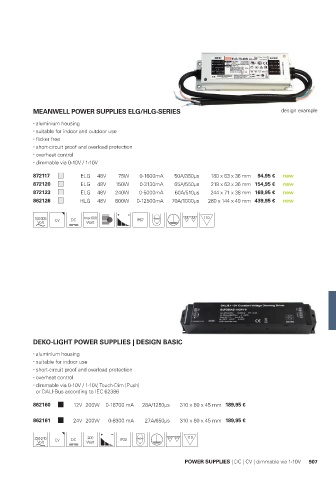

MEANWELL POWER SUPPLIES ELG/HLG-SERIES design example
aluminium housing
suitable for indoor and outdoor use
flicker free
short-circuit proof and overload protection
overheat control
dimmable via 0-10V / 1-10V
872117 ELG 48V 75W 0-1600mA 50A/350µs 180 x 63 x 36 mm 94,95 € new
872120 ELG 48V 150W 0-3130mA 65A/550µs 219 x 63 x 36 mm 154,95 € new
872123 ELG 48V 240W 0-5000mA 60A/510µs 244 x 71 x 38 mm 169,95 € new
862126 HLG 48V 600W 0-12500mA 70A/1000µs 280 x 144 x 49 mm 439,95 € new
100-305 CV max 600 IP67 M M
DEKO-LIGHT POWER SUPPLIES | DESIGN BASIC
aluminium housing
suitable for indoor use
short-circuit proof and overload protection
overheat control
dimmable via 0-10V / 1-10V, Touch-Dim [Push]
or DALI-Bus according to IEC 62386
862160 12V 200W 0-16700 mA 28A/1250µs 310 x 60 x 45 mm 189,95 €
862161 24V 200W 0-8300 mA 27A/650µs 310 x 60 x 45 mm 189,95 €
220-240 CV 200 IP20 M M
POWER SUPPLIES | DC | CV | dimmable via 1-10V 907
