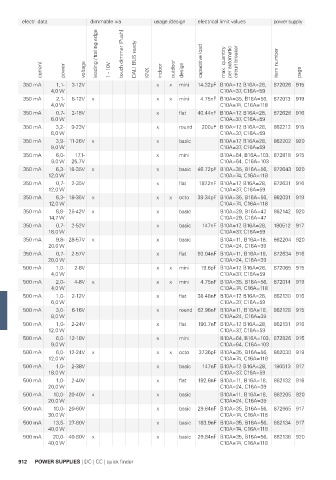

Page 914 - Deko-light Catalogue 2022
P. 914
electr. data dimmable via usage /design electrical limit values power supply
leading / trailing edge touch dimmer [Push] DALI BUS ready capacitive load
current power voltage 1 - 10V KNX indoor outdoor design max. quantity per automatic circuit breaker item number page
350 mA 1,1- 3-12V x x mini 14.32pF B10A=17, B16A=28, 872026 915
4,0 W C10A=37, C16A=59
350 mA 2,1- 6-12V x x x mini 4.75nF B10A=35, B16A=56, 872013 919
4,0 W C10A=74, C16A=118
350 mA 0,7- 2-18V x flat 40.44nF B10A=17, B16A=28, 872628 916
6,0 W C10A=37, C16A=59
350 mA 3,2- 9-23V x round 200uF B10A=17, B16A=28, 862212 915
8,0 W C10A=37, C16A=59
350 mA 3,9- 11-26V x x basic B10A=17, B16A=28, 862202 920
9,0 W C10A=37, C16A=59
350 mA 6,0- 17,1- x mini B10A=64, B16A=103, 872818 915
9,0 W 25,7V C10A=64, C16A=103
350 mA 6,3- 18-35V x x basic 46.72pF B10A=35, B16A=56, 872643 920
12,0 W C10A=74, C16A=118
350 mA 0,7- 2-35V x flat 187.2nF B10A=17, B16A=28, 872631 916
12,0 W C10A=37, C16A=59
350 mA 6,3- 18-35V x x x octo 39.34pF B10A=35, B16A=56, 862031 919
12,0 W C10A=74, C16A=118
350 mA 8,8- 25-42V x x basic B10A=29, B16A=47, 862142 920
14,7 W C10A=29, C16A=47
350 mA 0,7- 2-52V x basic 147nF B10A=17, B16A=28, 180512 917
18,0 W C10A=37, C16A=59
350 mA 9,8- 28-57V x x basic B10A=11, B16A=18, 862204 920
20,0 W C10A=24, C16A=39
350 mA 0,7- 2-57V x flat 93.04nF B10A=11, B16A=18, 872634 916
20,0 W C10A=24, C16A=39
500 mA 1,0- 2-8V x x mini 19.8pF B10A=17, B16A=28, 872065 915
4,0 W C10A=37, C16A=59
500 mA 2,0- 4-8V x x x mini 4.75nF B10A=35, B16A=56, 872014 919
4,0 W C10A=74, C16A=118
500 mA 1,0- 2-12V x flat 38.48nF B10A=17, B16A=28, 862130 916
6,0 W C10A=37, C16A=59
500 mA 3,0- 6-16V x round 62.96nF B10A=11, B16A=18, 862128 915
8,0 W C10A=24, C16A=39
500 mA 1,0- 2-24V x flat 190.7nF B10A=17, B16A=28, 862131 916
12,0 W C10A=37, C16A=59
500 mA 6,0- 12-18V x mini B10A=64, B16A=103, 872826 915
9,0 W C10A=64, C16A=103
500 mA 6,0- 12-24V x x x octo 37.36pF B10A=35, B16A=56, 862030 919
12,0 W C10A=74, C16A=118
500 mA 1,0- 2-38V x basic 147nF B10A=17, B16A=28, 180513 917
18,0 W C10A=37, C16A=59
500 mA 1,0- 2-40V x flat 192.6nF B10A=11, B16A=18, 862132 916
20,0 W C10A=24, C16A=39
500 mA 10,0- 20-40V x x basic B10A=11, B16A=18, 862205 920
20,0 W C10A=24, C16A=39
500 mA 10,0- 20-60V x basic 29.84nF B10A=35, B16A=56, 872665 917
30,0 W C10A=74, C16A=118
500 mA 13,5- 27-80V x basic 183.9nF B10A=35, B16A=56, 862134 917
40,0 W C10A=74, C16A=118
500 mA 20,0- 40-80V x x basic 29.84nF B10A=35, B16A=56, 862136 920
40,0 W C10A=74, C16A=118
912 POWER SUPPLIES | DC | CC | quick finder
