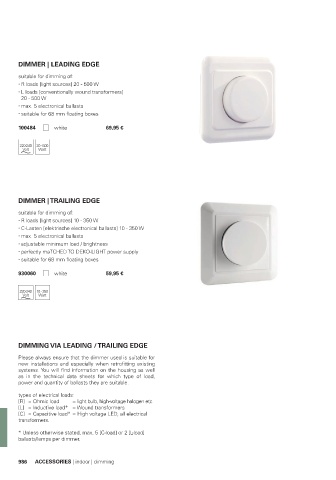

P. 988
DIMMER | LEADING EDGE
suitable for dimming of:
R loads [light sources] 20 - 500 W
L loads [conventionally wound transformers]
20 - 500 W
max. 5 electronical ballasts
suitable for 68 mm floating boxes
100484 white 69,95 €
220-240 20 - 500
DIMMER | TRAILING EDGE
suitable for dimming of:
R loads [light sources] 10 - 350 W
C -Lasten [elektrische electronical ballasts] 10 - 350 W
max. 5 electronical ballasts
adjustable minimum load / brightness
perfectly maTCHED TO DEKO-LIGHT power supply
suitable for 68 mm floating boxes
930060 white 59,95 €
220-240 10 - 350
DIMMING VIA LEADING / TRAILING EDGE
Please always ensure that the dimmer used is suitable for
new installations and especially when retrofitting existing
systems. You will find information on the housing as well
as in the technical data sheets for which type of load,
power and quantity of ballasts they are suitable.
types of electrical loads:
[R] = Ohmic load = light bulb, high-voltage halogen etc.
[L] = Inductive load* = Wound transformers
[C] = Capacitive load* = High voltage LED, all electrical
transformers.
* Unless otherwise stated, max. 5 [C-load] or 2 [L-load]
ballasts/lamps per dimmer.
986 ACCESSORIES | indoor | dimming
