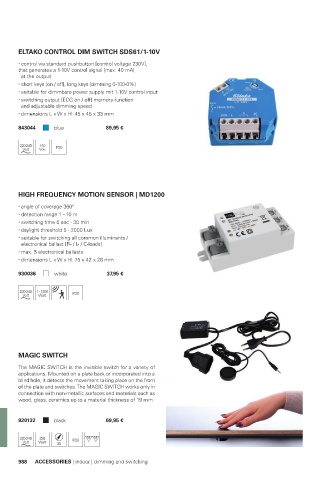

Page 990 - Deko-light Catalogue 2022
P. 990
ELTAKO CONTROL DIM SWITCH SDS61/1-10V
control via standard pushbutton [control voltage 230V],
that generates a 1-10V control signal [max. 40 mA]
at the output
short keys [on / off], long keys [dimming 0-100-0%]
suitable for dimmbare power supply mit 1-10V control input
switching output [ECG on / off] memory-function
and adjustable dimming speed
dimensions L x W x H: 45 x 45 x 33 mm
843044 blue 89,95 €
220-240 1-10 IP20
Volt
HIGH FREQUENCY MOTION SENSOR | MD1200
angle of coverage 360°
detection range 1 - 10 m
switching time 5 sec - 30 min
daylight threshold 5 - 2000 Lux
suitable for switching all common illuminants /
electronical ballast [R- / L- / C-loads]
max. 5 electronical ballasts
dimensions L x W x H: 75 x 42 x 28 mm
930036 white 37,95 €
220-240 1 - 1200 IP20
MAGIC SWITCH
The MAGIC SWITCH is the invisible switch for a variety of
applications. Mounted on a plate back or incorporated into a
blind hole, it detects the movement taking place on the front
of the plate and switches. The MAGIC SWITCH works only in
connection with non-metallic surfaces and materials such as
wood, glass, ceramics up to a material thickness of 19 mm.
920132 black 69,95 €
220-240 250 IP20 M M
35
988 ACCESSORIES | indoor | dimming and switching
