SEA AND AIR

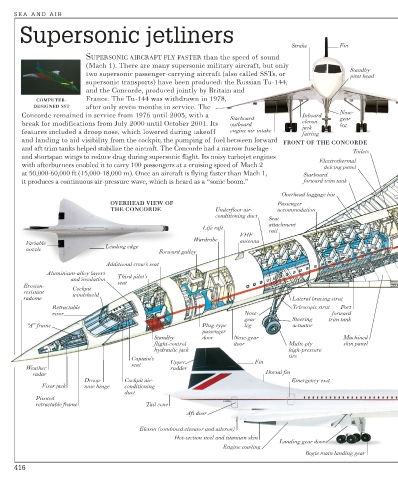

Supersonic jetliners

Strake Fin
SUPERSONIC AIRCRAFT FLY FASTER than the speed of sound
(Mach 1). There are many supersonic military aircraft, but only
Standby
two supersonic passenger-carrying aircraft (also called SSTs, or
pitot head
supersonic transports) have been produced: the Russian Tu-144,
and the Concorde, produced jointly by Britain and
France. The Tu-144 was withdrawn in 1978,
COMPUTER-
DESIGNED SST after only seven months in service. The
Nose-
Concorde remained in service from 1976 until 2003, with a Inboard
Starboard gear
break for modifications from July 2000 until October 2001. Its outboard elevon- leg
jack
features included a droop nose, which lowered during takeoff engine air-intake fairing
and landing to aid visibility from the cockpit; the pumping of fuel between forward
FRONT OF THE CONCORDE
and aft trim tanks helped stabilize the aircraft. The Concorde had a narrow fuselage
Toilets
and short span wings to reduce drag during supersonic flight. Its noisy turbojet engines
Electrothermal
with afterburners enabled it to carry 100 passengers at a cruising speed of Mach 2 deicing panel
at 50,000-60,000 ft (15,000-18,000 m). Once an aircraft is flying faster than Mach 1, Starboard
it produces a continuous air-pressure wave, which is heard as a “sonic boom.” forward trim tank
Overhead luggage bin
OVERHEAD VIEW OF Passenger
THE CONCORDE Underfloor air- accommodation
conditioning duct
Seat
attachment
Life raft rail
VHF
Wardrobe antenna
Variable Leading edge
nozzle
Forward galley
Additional crew’s seat
Aluminium-alloy layers
Third pilot’s
and insulation
Erosion- Cockpit seat
resistant windshield
radome Lateral bracing strut
Retractable Telescopic strut Port
visor Nose- forward
gear Steering trim tank
“A” frame Plug-type leg actuator
passenger
Standby door Nose-gear Machined
flight-control door Multi-ply skin panel
hydraulic jack high-pressure
tire
Captain’s
seat Upper Fin
Weather rudder
radar Dorsal fin
Droop- Cockpit air- Emergency exit
Visor jack nose hinge conditioning
duct
Pivoted
retractable frame Tail cone
Aft door
Elevon (combined elevator and aileron)
Hot-section steel and titanium skin
Landing gear door
Engine cowling
Bogie main landing gear
