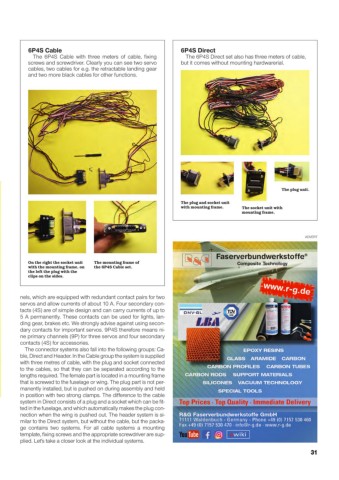

6P4S Cable 6P4S Direct
The 6P4S Cable with three meters of cable, fixing The 6P4S Direct set also has three meters of cable,
screws and screwdriver. Clearly you can see two servo but it comes without mounting hardwarerial.
cables, two cables for e.g. the retractable landing gear
and two more black cables for other functions.

The plug unit.

The plug and socket unit
with mounting frame. The socket unit with
mounting frame.

ADVERT

On the right the socket unit The mounting frame of
with the mounting frame, on the 6P4S Cable set.
the left the plug with the
clips on the sides.

nels, which are equipped with redundant contact pairs for two
servos and allow currents of about 10 A. Four secondary con-
tacts (4S) are of simple design and can carry currents of up to
5 A permanently. These contacts can be used for lights, lan-
ding gear, brakes etc. We strongly advise against using secon-
dary contacts for important servos. 9P4S therefore means ni-
ne primary channels (9P) for three servos and four secondary
contacts (4S) for accessories.
The connector systems also fall into the following groups: Ca-
ble, Direct and Header. In the Cable group the system is supplied
with three metres of cable, with the plug and socket connected
to the cables, so that they can be separated according to the
lengths required. The female part is located in a mounting frame
that is screwed to the fuselage or wing. The plug part is not per-
manently installed, but is pushed on during assembly and held
in position with two strong clamps. The difference to the cable
system in Direct consists of a plug and a socket which can be fit-
ted in the fuselage, and which automatically makes the plug con-
nection when the wing is pushed out. The header system is si-
milar to the Direct system, but without the cable, but the packa-
ge contains two systems. For all cable systems a mounting
template, fixing screws and the appropriate screwdriver are sup-
plied. Let's take a closer look at the individual systems.
