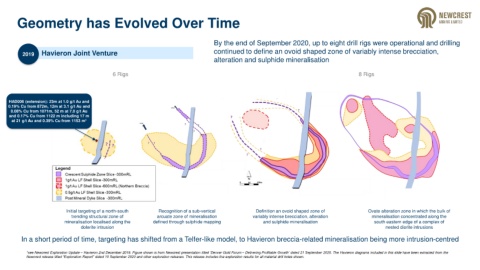

Geometry has Evolved Over Time

By the end of September 2020, up to eight drill rigs were operational and drilling

2019 Havieron Joint Venture continued to define an ovoid shaped zone of variably intense brecciation,
alteration and sulphide mineralisation

6 RigsRigs 8 Rigs
6

HAD006 (extension): 23m at 1.0 g/t Au and
0.19% Cu from 872m, 12m at 3.1 g/t Au and
0.08% Cu from 1071m, 52 m at 7.0 g/t Au
and 0.17% Cu from 1122 m including 17 m
at 21 g/t Au and 0.39% Cu from 1153 m 1

Initial targeting of a north-south Recognition of a sub-vertical Definition an ovoid shaped zone of Ovate alteration zone in which the bulk of
trending structural zone of arcuate zone of mineralisation variably intense brecciation, alteration mineralisation concentrated along the
mineralisation localised along the defined through sulphide mapping and sulphide mineralisation south eastern edge of a complex of
dolerite intrusion nested diorite intrusions

In a short period of time, targeting has shifted from a Telfer-like model, to Havieron breccia-related mineralisation being more intrusion-centred

1 see Newcrest Exploration Update – Havieron 2nd December 2019. Figure shown is from Newcrest presentation tilted ‘Denver Gold Forum – Delivering Profitable Growth’ dated 21 September 2020. The Havieron diagrams included in this slide have been extracted from the
Newcrest release titled “Exploration Report” dated 10 September 2020 and other exploration releases. This release includes the exploration results for all material drill holes shown.
