Chapter 5 Cold water systems

directly from the supply pipe, provided that the water undertaker agrees. With
indirect systems, a series of float switches in the break cistern starts and stops
the pumps depending upon the water levels in the cistern.
Boosting pumps can create excessive aeration of the water, which, although
causing no deterioration of water quality, can cause concern to the consumer
because of the opaque, milky appearance of the water. There are several
common examples of these systems:
● direct boosting systems
● direct boosting to a drinking water header and duplicate storage cisterns
● indirect boosting to a storage cistern
● indirect boosting with a pressure vessel.
Direct boosting systems

Where permission from the water undertaker has been granted, pumps can be
directly fitted to the incoming supply pipe to enable the head of pressure to be
increased.

Pump stop
Pump start

Incoming supply

NOTE: This drawing does not show any
additional backflow prevention devices
that may be required under the Water Supply
(Water Fittings) Regulations 1999.

Stop valve Duplicate pump

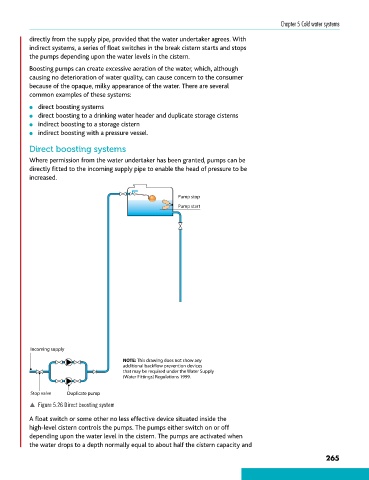

p Figure 5.26 Direct boosting system

A float switch or some other no less effective device situated inside the
high-level cistern controls the pumps. The pumps either switch on or off
depending upon the water level in the cistern. The pumps are activated when
the water drops to a depth normally equal to about half the cistern capacity and

265
