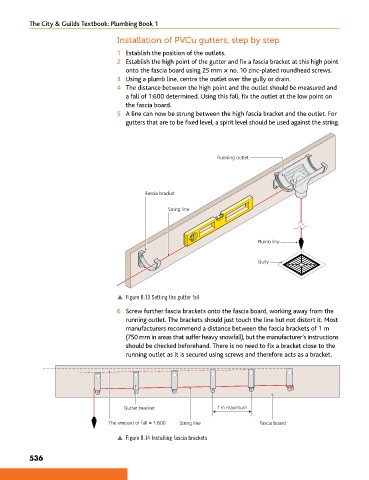

Installation of PVCu gutters, step by step

1 Establish the position of the outlets.
2 Establish the high point of the gutter and fix a fascia bracket at this high point
onto the fascia board using 25 mm × no. 10 zinc-plated roundhead screws.
3 Using a plumb line, centre the outlet over the gully or drain.
4 The distance between the high point and the outlet should be measured and
a fall of 1:600 determined. Using this fall, fix the outlet at the low point on
the fascia board.
5 A line can now be strung between the high fascia bracket and the outlet. For
gutters that are to be fixed level, a spirit level should be used against the string.

Running outlet

Fascia bracket

String line

Plumb line

Gully

p Figure 8.13 Setting the gutter fall

6 Screw further fascia brackets onto the fascia board, working away from the
running outlet. The brackets should just touch the line but not distort it. Most
manufacturers recommend a distance between the fascia brackets of 1 m
(750 mm in areas that suffer heavy snowfall), but the manufacturer’s instructions
should be checked beforehand. There is no need to fix a bracket close to the
running outlet as it is secured using screws and therefore acts as a bracket.

Gutter bracket 1 m maximum

The amount of fall = 1:600 String line Fascia board

p Figure 8.14 Installing fascia brackets
