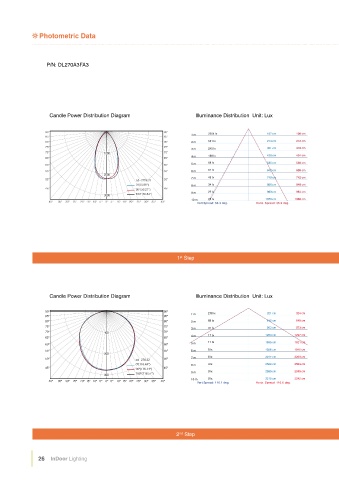

Photometric Data

P/N: DL270A3FA3

Candle Power Distribution Diagram Illuminance Distribution Unit: Lux

90° 90° 2204 lx 107 cm 106 cm
85° 85° 1 m
80° 80° 2 m 551 lx 214 cm 212 cm
75° 75°
3 m 245 lx 321 cm 318 cm
70° 1000 70°
65° 65° 4 m 138 lx 428 cm 424 cm
60° 60° 5 m 88 lx 535 cm 530 cm
55° 55° 6 m 61 lx 642 cm 636 cm
2000
50° cd=2226.21 50° 7 m 45 lx 749 cm 742 cm
0°(55.85°) 8 m 34 lx 856 cm 848 cm
45° 90°(56.27°) 45° 27 lx
3000 180°(55.84°) 9 m 963 cm 954 cm
10 m 22 lx 1070 cm 1060 cm
40° 35° 30° 25° 20° 15° 10° 5° 0° 5° 10° 15° 20° 25° 30° 35° 40°
Vert.Spread: 56.3 deg. Horiz. Spread: 55.9 deg.

st
1 Step

Candle Power Distribution Diagram Illuminance Distribution Unit: Lux

90° 90° 278 lx 321 cm 324 cm
85° 85° 1 m
80° 80° 2 m 69 lx 642 cm 648 cm
75° 75° 963 cm 973 cm
3 m 31 lx
70° 100 70°
4 m 17 lx 1284 cm 1297 cm
65° 65°
60° 60° 5 m 11 lx 1605 cm 1621 cm
55° 55° 6 m 8 lx 1926 cm 1945 cm
200
50° cd=278.22 50° 7 m 6 lx 2247 cm 2269 cm
0°(116.64°) 8 m 4 lx 2568 cm 2593 cm
45° 90°(116.14°) 45° 3 lx 2889 cm 2918 cm
300 180°(116.57°) 9 m
10 m 3 lx 3210 cm 3242 cm
40° 35° 30° 25° 20° 15° 10° 5° 0° 5° 10° 15° 20° 25° 30° 35° 40°
Vert.Spread: 116.1 deg. Horiz. Spread: 116.6 deg.

nd
2 Step
