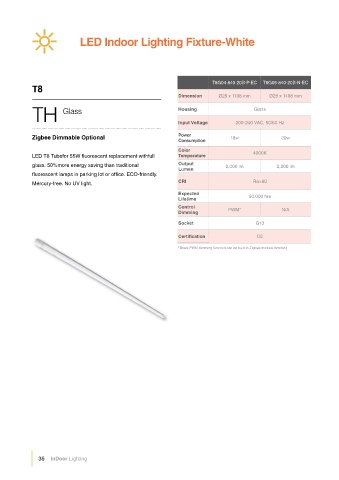

LED Indoor Lighting Fixture-White








                                                                            T8G04-840-20B-P-EC  T8G05-840-20B-N-EC
            T8
                                                                Dimension     Ø28 x 1198 mm     Ø28 x 1498 mm
            TH         Glass                                    Housing             200-240 VAC, 50/60 Hz
                                                                                          Glass

                                                                Input Voltage

            Zigbee Dimmable Optional                            Power             18w               20w
                                                                Consumption
                                                                Color
            LED T8 Tubefor 55W  uorescent replacement withfull  Temperature               4000K
            glass. 50%more energy saving than traditional       Output          2,000 lm          2,200 lm
                                                                Lumen
             uorescent lamps in parking lot or of ce. ECO-friendly.
            Mercury-free. No UV light.                          CRI                       Ra>80
                                                                Expected                50,000 hrs
                                                                Lifetime
                                                                Control
                                                                Dimming          PWM*               N/A
                                                                Socket                     G13

                                                                Certi cation               CE

                                                               *There PWM dimming function can be built-in Zigbee module dimming
