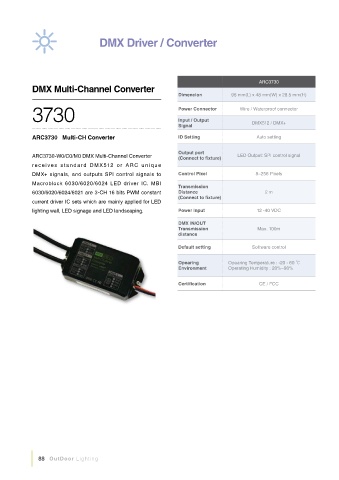

DMX Driver / Converter
ARC3730
DMX Multi-Channel Converter
Dimencion 96 mm(L) x 48 mm(W) x 28.5 mm(H)
3730 Power Connector Wire / Waterproof connector
Input / Output
Signal DMX512 / DMX+
ARC3730 Multi-CH Converter ID Setting Auto setting
Output port
ARC3730-W0/C0/M0 DMX Multi-Channel Converter (Connect to xture) LED Output: SPI control signal
r e c e i ve s s t a n d a r d D M X512 o r A R C u n i q u e
DMX+ signals, and outputs SPI control signals to Control Pixel 8~256 Pixels
Macroblock 6030/6020/6024 LED driver IC. MBI
Transmission
6030/6020/6024/6021 are 3-CH 16 bits PWM constant Distance 2 m
(Connect to xture)
current driver IC sets which are mainly applied for LED
lighting wall, LED signage and LED landscaping. Power Input 12 -40 VDC
DMX IN/OUT
Transmission Max. 100m
distance
Default setting Software control
Opearing Opearing Temperature : -20 - 60 Ċ
Environment Operating Humidity : 20%~90%
Certi cation CE / FCC
