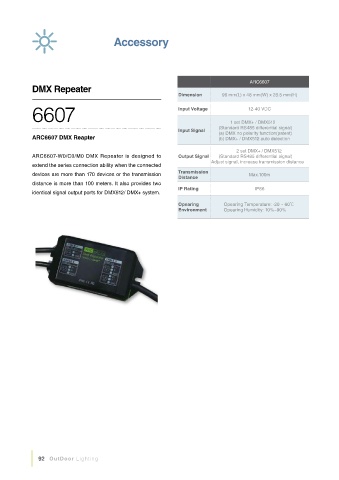

Page 93 - ARC KATALOG

Accessory

ARC6607
DMX Repeater
Dimension 96 mm(L) x 48 mm(W) x 28.5 mm(H)

6607 Input Voltage 12-40 VDC

1 set DMX+ / DMX512
(Standard RS485 differential signal)
Input Signal (a) DMX no polarity function(patent)
ARC6607 DMX Reapter (b) DMX+ / DMX512 auto detection

2 set DMX+ / DMX512
ARC6607-W0/C0/M0 DMX Repeater is designed to Output Signal (Standard RS485 differential signal)
Adjust signal, increase transmission distance
extend the series connection ability when the connected
devices are more than 170 devices or the transmission Transmission Max.100m
Distance
distance is more than 100 meters. It also provides two
IP Rating IP66
identical signal output ports for DMX512/ DMX+ system.
Opearing Opearing Temperature: -20 ~ 60Ċ
Environment Opearing Humidity: 10%~90%
