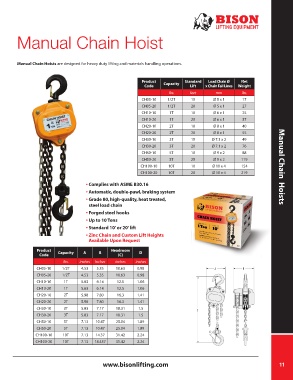

Manual Chain Hoist

Manual Chain Hoists are designed for heavy duty lifting and materials handling operations.

Product Capacity Standard Load Chain Ø Net
Code Lift x Chain Fall Lines Weight
lbs. feet mm lbs.
CH05-10 1/2T 10 Ø 5 x 1 17
CH05-20 1/2T 20 Ø 5 x 1 27
CH10-10 1T 10 Ø 6 x 1 25
CH10-20 1T 20 Ø 6 x 1 37
CH20-10 2T 10 Ø 8 x 1 40
CH20-20 2T 20 Ø 8 x 1 55
CH30-10 3T 10 Ø 7.1 x 2 49
CH30-20 3T 20 Ø 7.1 x 2 76
CH50-10 5T 10 Ø 9 x 2 88
CH50-20 5T 20 Ø 9 x 2 119
CH100-10 10T 10 Ø 10 x 4 154 Manual Chain Hoists
CH100-20 10T 20 Ø 10 x 4 219

• Complies with ASME B30.16
• Automatic, double-pawl, braking system
• Grade 80, high-quality, heat treated,
steel load chain
• Forged steel hooks
• Up to 10 Tons
• Standard 10' or 20' lift
• Zinc Chain and Custom Lift Heights
Available Upon Request

Product Capacity A B Headroom D
Code (C)
lbs. inches inches inches inches
CH05-10 1/2T 4.53 5.35 10.63 0.98
CH05-20 1/2T 4.53 5.35 10.63 0.98
CH10-10 1T 5.63 6.14 12.5 1.06
CH10-20 1T 5.63 6.14 12.5 1.06
CH20-10 2T 5.98 7.80 16.3 1.41
CH20-20 2T 5.98 7.80 16.3 1.41
CH30-10 3T 5.83 7.17 18.31 1.5
CH30-20 3T 5.83 7.17 18.31 1.5
CH50-10 5T 7.13 10.47 25.04 1.89
CH50-20 5T 7.13 10.47 25.04 1.89
CH100-10 10T 7.13 14.37 31.42 2.24
CH100-20 10T 7.13 14.437 31.42 2.24
