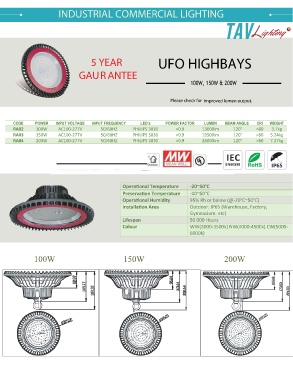

Page 2 - TAV CATELOGUE RGB

INDUSTRIAL COMMERCIAL LIGHTING

³

5 YEAR UFO HIGHBAYS

GAURANTEE

100W, 150W & 200W

Please check for improved lumen output.

CODE POWER INPUT VOLTAGE INPUT FREQUENCY LED’s POWER FACTOR LUMEN BEAM ANGLE CRI WEIGHT
RA02 100W AC100-277V 50/60HZ PHILIPS 3030 >0.9 13000lm 120° >80 3.7kg
RA03 150W AC100-277V 50/60HZ PHILIPS 3030 >0.9 19500lm 120° >80 5.24kg
RA04 200W AC100-277V 50/60HZ PHILIPS 3030 >0.9 26000lm 120° >80 7.27kg

Operational Temperature -20~50°C
Preservation Temperature -40~60°C
Operational Humidity 95% Rh or below (@-20°C~50°C)
Installation Area Outdoor: IP65 (Warehouse, Factory,
Gymnasium. etc)
Lifespan 50 000 Hours
Colour WW(3000-3500k) NW(4000-4500k) CW(5000-
6000k)

100W 150W 200W
