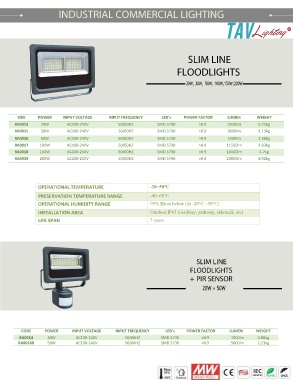

Page 3 - TAV CATELOGUE RGB
P. 3
INDUSTRIAL COMMERCIAL LIGHTING
³
SLIM LINE
FLOODLIGHTS
20W, 30W, 50W, 100W,150W,200W
ODE POWER INPUT VOLTAGE INPUT FREQUENCY LED’s POWER FACTOR LUMEN WEIGHT
RA0013 20W AC100-240V 50/60HZ SMD 5730 >0.9 1900llm 0.71kg
RA0015 30W AC100-240V 50/60HZ SMD 5730 >0.9 3000lm 1.15kg
RA0016 50W AC100-240V 50/60HZ SMD 5730 >0.9 5000lm 1.96kg
RA0017 100W AC100-240V 50/60HZ SMD 5730 >0.9 11500lm 4.93kg
RA0018 150W AC100-240V 50/60HZ SMD 5730 >0.9 16500lm 4.7kg
RA0019 200W AC100-240V 50/60HZ SMD 5730 >0.9 23000lm 8.92kg
OPERATIONAL TEMPERATURE -20~50°C
PRESERVATION TEMPERATURE RANGE -40~60°C
OPERATIONAL HUMIDITY RANGE 95% Rh or below (@ -20°C ~50°C)
INSTALLATION AREA Outdoor IP65 (roadway, pathway, sidewalk, etc)
LIFE SPAN 3 years
SLIM LINE
FLOODLIGHTS
+ PIR SENSOR
20W + 50W
CODE POWER INPUT VOLTAGE INPUT FREQUENCY LED’s POWER FACTOR LUMEN WEIGHT
RA0014 20W AC100-240V 50/60HZ SMD 5730 >0.9 1900lm 0.86kg
RA0016B 50W AC100-240V 50/60HZ SMD 5730 >0.9 5000lm 2.21kg
