Page 13 - STC 800

12 STC800S TruCk Crane STC800S TruCk Crane 13

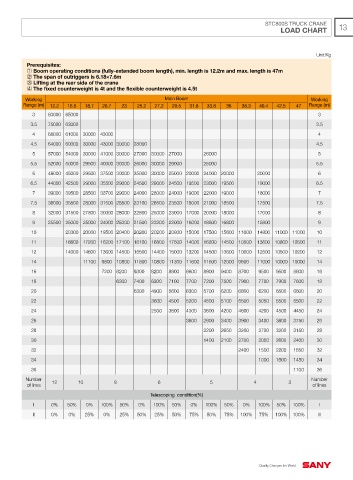

lOAD CHART
lOAD CHART

Unit:Kg Unit:Kg
Prerequisites: Prerequisites:
① Boom operating conditions (fully-extended boom length), min. length is 12.2m and max. length is 47m ① Boom operating conditions (fully-extended boom length), min. length is 12.2m and max. length is 47m
② The span of outriggers is 6.18×7.6m ② The span of outriggers is 6.18×7.6m
③ lifting at the rear side of the crane ③ lifting at the rear side of the crane
④ The fixed counterweight is 4t ④ The fixed counterweight is 4t and the flexible counterweight is 4.5t

Working Main Boom Working Working Main Boom Working
range (m) 12.2 16.5 18.7 20.7 23 25.2 27.2 29.5 31.8 33.8 36 38.3 40.4 42.5 47 range (m) range (m) 12.2 16.5 18.7 20.7 23 25.2 27.2 29.5 31.8 33.8 36 38.3 40.4 42.5 47 range (m)
3 80000 62000 3 3 80000 65000 3
3.5 75000 58000 3.5 3.5 75000 63000 3.5
4 67000 56000 30000 43000 4 4 68000 61000 30000 43000 4
4.5 62000 54000 30000 42500 30000 28000 4.5 4.5 64000 60000 30000 43000 30000 28000 4.5
5 54050 49000 30000 41000 30000 27000 30000 27000 26000 5 5 57000 54000 30000 41000 30000 27000 30000 27000 26000 5
5.5 48000 46000 30000 39000 30000 26000 30000 26000 25000 5.5 5.5 52000 50000 29500 40000 30000 26000 30000 26000 25000 5.5
6 45000 42500 30000 37000 30000 25000 30000 25000 20000 24000 20000 20000 6 6 48000 45000 29500 37500 30000 25000 30000 25000 20000 24000 20000 20000 6
6.5 40000 38000 29000 33200 29000 24500 28800 24500 19500 23000 19500 19000 6.5 6.5 44000 42500 29000 35500 29000 24500 29000 24500 19500 23000 19500 19000 6.5
7 35000 34000 29000 32800 29000 24000 27500 24000 19000 22000 19000 18000 7 7 39000 39500 28500 33700 29000 24000 28000 24000 19000 22000 19000 18000 7
7.5 30100 30000 28000 29600 27200 23100 26000 23500 18000 21000 18500 17500 7.5 7.5 36000 35500 28000 31500 28500 23100 26500 23500 18000 21000 18500 17500 7.5
8 26300 25800 26500 25400 26500 22800 24500 23000 17000 20000 18000 17000 8 8 32000 31500 27800 30000 28000 22800 25000 23000 17000 20000 18000 17000 8
9 20600 20300 21000 20000 21000 21500 21200 21800 16000 18600 16800 15500 9 9 25500 25000 25000 24000 25000 21500 23200 22000 16000 18800 16800 15800 9
10 16200 17500 15900 17500 18500 17200 17900 15000 17200 15600 11000 14500 11000 11000 10 10 20300 20000 19500 20400 20200 20200 20800 15000 17500 15600 11000 14800 11000 11000 10
11 13000 14600 12800 14500 15600 14200 15000 14000 15200 14500 10500 13300 10800 10500 11 11 16600 17200 16200 17100 18100 16800 17500 14000 16200 14500 10500 13600 10800 10500 11
12 10700 12600 10400 12200 13400 11900 12800 13200 12600 13600 10000 12500 10500 10200 12 12 14000 14600 13600 14500 15500 14400 15000 13200 14500 13600 10000 12500 10500 10200 12

14 9100 7100 8900 10000 8300 9500 10000 9500 10100 9600 10000 10000 9900 14 14 11100 9800 10800 11800 10800 11300 11600 11500 12000 9600 11000 10000 10000 14
16 4800 6600 7700 6100 7300 8100 6900 7800 8400 7600 8100 8100 16 16 7200 8200 9300 8200 8800 9600 8900 9400 8700 9500 9500 8800 16
18 4900 6000 4300 5600 6400 5250 6200 6700 5800 6600 6300 18 18 6300 7400 6300 7100 7700 7200 7500 7900 7700 7900 7600 18
20 5000 3200 4500 5050 3900 4900 5500 4500 5200 5000 20 20 6300 4900 5600 6300 5700 6200 6600 6200 6500 6600 20
22 2200 3400 4050 2800 3900 4400 3600 4200 4000 22 22 3600 4500 5200 4500 5100 5500 5050 5500 5500 22
24 2600 3300 2100 3100 3600 2700 3400 3200 24 24 2500 3600 4300 3600 4200 4600 4200 4500 4450 24
26 2750 1450 2350 2900 2050 2800 2400 26 26 3600 2900 3400 3900 3400 3800 3750 26
28 1750 2400 1300 2100 1900 28 28 2200 2650 3200 2700 3200 3150 28
30 1350 1900 1000 1700 1300 30 30 1400 2100 2700 2050 2600 2400 30
32 1550 1300 750 32 32 2400 1500 2200 1850 32
34 750 34 34 1000 1600 1450 34
Number 12 10 8 6 5 4 3 Number 36 1100 36
of lines of lines
Number Number
Telescoping condition(%) of lines 12 10 8 6 5 4 3 of lines
Ⅰ 0% 50% 0% 100% 50% 0% 100% 50% 0% 100% 50% 0% 100% 50% 100% Ⅰ Telescoping condition(%)
Ⅱ 0% 0% 25% 0% 25% 50% 25% 50% 75% 50% 75% 100% 75% 100% 100% Ⅱ Ⅰ 0% 50% 0% 100% 50% 0% 100% 50% 0% 100% 50% 0% 100% 50% 100% Ⅰ
Ⅱ 0% 0% 25% 0% 25% 50% 25% 50% 75% 50% 75% 100% 75% 100% 100% Ⅱ
