STC800S TruCk Crane
18 STC800S TruCk Crane WHEEl CRANE FAMIlY MAP 19

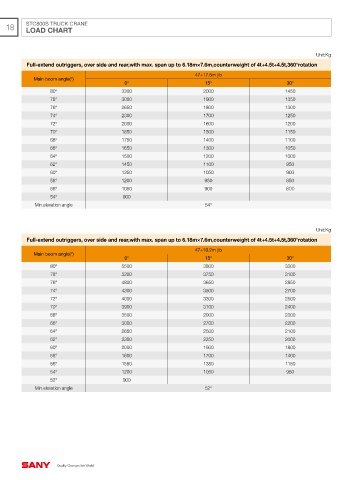

lOAD CHART

Unit:Kg
Full-extend outriggers, over side and rear,with max. span up to 6.18m×7.6m,counterweight of 4t+4.5t+4.5t,360°rotation
47+17.5m jib
Main boom angle(°)
0° 15° 30°
80° 3300 2000 1450
78° 3000 1900 1350
76° 2650 1800 1300
74° 2300 1700 1250
72° 2000 1600 1200
70° 1850 1500 1150
68° 1750 1400 1100
66° 1650 1300 1050
64° 1500 1200 1000
62° 1450 1100 950
60° 1350 1050 900
58° 1200 950 850
56° 1050 900 800
54° 900
Min.elevation angle 54°

Unit:Kg
Full-extend outriggers, over side and rear,with max. span up to 6.18m×7.6m,counterweight of 4t+4.5t+4.5t,360°rotation
47+10.2m jib
Main boom angle(°)
0° 15° 30°
80° 5500 3800 3300
78° 5200 3750 3100
76° 4800 3650 2850
74° 4300 3500 2700
72° 4000 3300 2500
70° 3900 3100 2400
68° 3500 2900 2300
66° 3000 2700 2200
64° 2650 2500 2100
62° 2300 2250 2000
60° 2000 1900 1800
58° 1800 1700 1400
56° 1550 1350 1150
54° 1200 1050 950
52° 900
Min.elevation angle 52°
