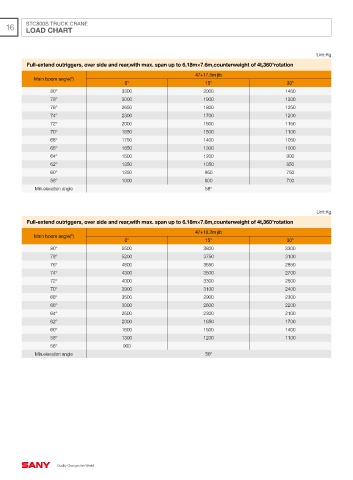

lOAD CHART
lOAD CHART

Unit:Kg Unit:Kg
Unit:Kg
Full-extend outriggers, over side and rear,with max. span up to 6.18m×7.6m,counterweight of 4t,360°rotation Full-extend outriggers, over side and rear,with max. span up to 6.18m×7.6m,counterweight of 4t+4.5t,360°rotation
47+17.5m jib 47+17.5m jib
Main boom angle(°) Main boom angle(°)
0° 15° 30° 0° 15° 30°
80° 3300 2000 1450 80° 3300 2000 1450
78° 3000 1900 1300 78° 3000 1900 1300
76° 2650 1800 1250 76° 2650 1800 1250
74° 2300 1700 1200 74° 2300 1700 1200
72° 2000 1600 1150 72° 2000 1600 1150
70° 1850 1500 1100 70° 1850 1500 1100
68° 1750 1400 1050 68° 1750 1400 1050
66° 1650 1300 1000 66° 1650 1300 1000
64° 1500 1200 900 64° 1500 1200 950
62° 1350 1050 850 62° 1350 1050 900
60° 1250 950 750 60° 1300 1000 800
58° 1000 800 700 58° 1100 900 750
Min.elevation angle 58° 56° 950 800
54° 800
Min.elevation angle 54°
Unit:Kg
Full-extend outriggers, over side and rear,with max. span up to 6.18m×7.6m,counterweight of 4t,360°rotation
Unit:Kg
Unit:Kg
47+10.2m jib
Main boom angle(°)
0° 15° 30° Full-extend outriggers, over side and rear,with max. span up to 6.18m×7.6m,counterweight of 4t+4.5t,360°rotation
80° 5500 3800 3300 47+10.2m jib
Main boom angle(°)
78° 5200 3750 3100 0° 15° 30°
76° 4800 3650 2850 80° 5500 3800 3300
74° 4300 3500 2700 78° 5200 3750 3100
72° 4000 3300 2500 76° 4800 3650 2850
70° 3900 3100 2400 74° 4300 3500 2700
68° 3500 2900 2300 72° 4000 3300 2500
66° 3000 2600 2200 70° 3900 3100 2400
64° 2500 2300 2100 68° 3500 2900 2300
62° 2000 1850 1700 66° 3000 2700 2200
60° 1600 1500 1400 64° 2500 2400 2100
58° 1300 1200 1100 62° 2200 2100 1850
56° 900 60° 1800 1700 1600
Min.elevation angle 56º 58° 1550 1500 1300
56° 1350 1250 1000
54° 1000 950
Min.elevation angle 54°
