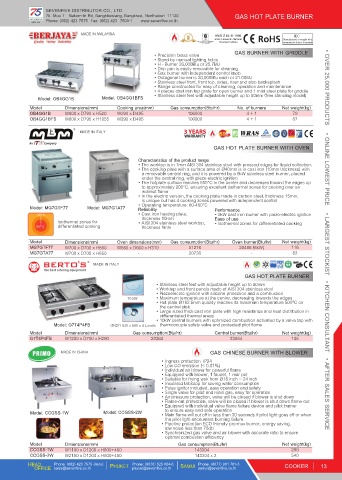

Page 15 - 75 Catalogue

SEVENFIVE DISTRIBUTOR CO., LTD.
75 Moo 7 Nakorn-In Rd, Bangkhuwiang, Bangkruai, Nonthaburi 11130 GAS HOT PLATE BURNER
Phone: (662) 423 7575 Fax: (662) 423 7500-1 www.sevenfive.co.th

• Precision brass valve GAS BURNER WITH GRIDDLE
• Stand by manual lighting holes
• H - Burner 26,000Btu or 25.7MJ
• Drip pan is easily removable for cleaning
• Gas burner with independent control knob
• Octagonal burner is 20,000Btu each or 21.00MJ
• Stainless steel front, front top, sides, riser and also backsplash
• Range constructed for easy of cleaning, operation and maintenance
• 4 pieces cast iron top grate for open burner and 1 mild steel plate for griddle • OVER 25,000 PRODUCTS
Model: OB4GG1B Model: OB4GG1BFS • Stainless steel feet with adjustable height up to 50mm (free standing model)
Model Dimensions(mm) Cooking area(mm) Gas consumption(Btu/hr) No. of burners Net weight(kg)
OB4GG1B W900 x D790 x H520 W290 x D495 106000 4 + 1 79
OB4GG1BFS W900 x D790 x H1055 W290 x D495 106000 4 + 1 87

GAS HOT PLATE BURNER WITH OVEN

Characteristics of the product range
• The worktop is in 1mm AISI 304 stainless steel with pressed edges for liquid collection.
• The cooking plate with a surface area of Ø40mm is in cast iron (10mm thickness) with
a removable central ring, and it is powered by a 9kW stainless steel burner, placed • ONLINE LOWEST PRICE
under the central ring, with piezo-electric ignition
• The hotplate surface reaches 500°C in the center and decreases toward the edges up
to approximately 200°C, ensuring excellent isothermal zones for cooking over an
indirect flame
• In the electric version, the cooking plate made in carbon steel, thickness 15mm,
is unique but has 4 cooking zones powered with independent control
Model: MG7GTF77 Model: MG7GTA77 • Operating temperature: 80-450°C Performance
Reliability
200°C • Cast iron heating plate, • 9kW cast iron burner with piezo-electric ignition
thickness 10mm
Ease of use
Isothermal zones for • AISI 304 stainless steel worktop, • Isothermal zones for differentiated cooking
500°C differentiated cooking thickness 1mm
Model Dimensions(mm) Oven dimensions(mm) Gas consumption(Btu/hr) Oven burner(Btu/hr) Net weight(kg)
MG7GTF77 W700 x D700 x H850 W560 x D660 x H310 51216 20486 (6kW) 116 • LARGEST STOCKIST
MG7GTA77 W700 x D700 x H850 - 30730 - 83

GAS HOT PLATE BURNER
• Stainless steel feet with adjustable height up to 50mm
• Worktop and front panels made of AISI 304 stainless steel
• Piezoelectric ignition with silicone protection and a combustion
10 kW • Maximum temperature at the centre, decreasing towards the edges
• Hot plate Ø192.5mm quickly reaches its maximum temperature 500ºC on
the central disk
• Large sized thick cast iron plate with high resistance and heat distribution in
differentiated thermal areas • KITCHEN CONSULTANT
thermocouple safety valve and protected pilot flame
Model: G7T4P4FB GN2/1 530 x 650 x 4 Levels • 10kW central burners with optimized combustion activated by a valve tap with
Model Dimensions(mm) Gas consumption(Btu/hr) Central burner(Btu/hr) Net weight(kg)
G7T4P4FB W1200 x D700 x H290 22360 23884 108

GAS CHINESE BURNER WITH BLOWER
• Ingress protection IP24
• Low CO emission (< 0.01%)
• Individual air blower for powerful flame
• Equipped with blower, 1 faucet, 1 rear pot
• Suitable for frying wok from Ø18 inch ~ 24 inch
• Insulated tabletop for saving water consumption
• Pulse ignitor included, easy operation and safety
• Single valve for pilot and main gas, easy for operation
• Air pressure protection, valve will be closed if blower is shut down • AFTER SALES SERVICE
• Flame-out protection, valve will be closed if blower is shut down flame-out
• Equipped with individual valve flame failure device and pilot burner
Model: CCGSS-1W Model: CCGSS-2W to ensure easy and safe operation
• Main flame will cut off in less than 30 seconds if pilot light goes off or when
the pilot light encounters burning failure
• Pipeline protection ECO friendly pre-mux burner, energy saving,
low noise less than 70db
• Synchronized gas valve and air blower with accurate ratio to ensure
optimal combustion efficiency
Model Dimensions(mm) Gas consumption(Btu/hr) Net weight(kg)
CCGSS-1W W1100 x D1200 x H800+450 143304 290
CCGSS-2W W2150 x D1200 x H800+450 143304 x 2 540
HEAD Phone: (662) 423 7575 (Auto) PHUKET Phone: (6676) 525 084-6 SAMUI Phone: (6677) 961 761-3 COOKER 13
OFFICE sales@sevenfive.co.th phuket@sevenfive.co.th samui@sevenfive.co.th
