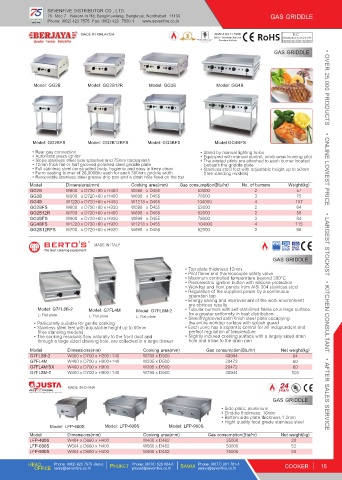

Page 17 - 75 Catalogue

SEVENFIVE DISTRIBUTOR CO., LTD.
75 Moo 7 Nakorn-In Rd, Bangkhuwiang, Bangkruai, Nonthaburi 11130 GAS GRIDDLE
Phone: (662) 423 7575 Fax: (662) 423 7500-1 www.sevenfive.co.th

GAS GRIDDLE

Model: GG2B Model: GG2B12R Model: GG3B Model: GG4B • OVER 25,000 PRODUCTS

Model: GG2BFS Model: GG2B12RFS Model: GG3BFS Model:GG4BFS
• Rear gas connection • Stand by manual lighting holes
• Automatic piezo ignitor • Equipped with manual control, continuous burning pilot
• Slope stainless steel side splashes and 75mm backsplash • The airated pilots are attached to each burner located
• 12mm thick flat or half grooved polished steel griddle plate beneath the griddle plate
• Full stainless steel constructed body, hygienic and easy to keep clean • Stainless steel feet with adjustable height up to 50mm
• Ferro casting burner of 26,000Btu each for each 300mm griddle width (free standing models) • ONLINE LOWEST PRICE
• Removable stainless steel grease drip pan and a drain hole fixed on the top
Model Dimensions(mm) Cooking area(mm) Gas consumption(Btu/hr) No. of burners Weight(kg)
GG2B W600 x D720+60 x H400 W598 x D455 52000 2 57
GG3B W900 x D720+60 x H400 W898 x D455 78000 3 75
GG4B W1220 x D720+60 x H400 W1218 x D455 104000 4 107
GG2BFS W600 x D720+60 x H930 W598 x D455 52000 2 64
GG2B12R W700 x D720+60 x H400 W698 x D455 52000 2 58
GG3BFS W900 x D720+60 x H930 W898 x D455 78000 3 84
GG4BFS W1220 x D720+60 x H930 W1218 x D455 104000 4 115
GG2B12RFS W700 x D720+60 x H930 W698 x D455 52000 2 66

GAS GRIDDLE • LARGEST STOCKIST
• Top plate thickness 12mm
• Pilot flame and thermocouple safety valve
• Maximum controlled temperature beyond 300°C
• Piezoelectric ignition button with silicone protection
• Worktop and front panels from AISI 304 stainless steel
• Regulation of the supplied power by a continuous
operation tap
• Energy saving and improvement of the work environment
• Tubular burners with self-stabilized flame on a large surface
Model: G7FL8B-2 Model: G7FL4M Model: G7FL8M-2 are obvious results
L: Flat plate L: Flat plate L: Flat plate for a greater uniformity in heat distribution
• Smooth/grooved satin finish steel plate occupying
• Particularly suitable for gentle cooking the entire worktop surface with splash guard • KITCHEN CONSULTANT
• Stainless steel feet with adjustable height up to 50mm • Each zone has a separate control for an independent and
(free standing models) perfect regulation of temperature
• The cooking residuals flow naturally to the front duct and • Slightly inclined cooking surface with a largely sized drain
through a large sized draining hole, are collected in a large drawer hole and a line to the drain pan
Model Dimensions(mm) Cooking area(mm) Gas consumption(Btu/hr) Net weight(kg)
G7FL8B-2 W800 x D700 x H290+140 W795 x D500 40994 84
G7FL4M W400 x D700 x H900+140 W395 x D500 20472 60
G7FL4M/SX W400 x D700 x H900 W395 x D500 20472 60
G7FL8M-2 W800 x D700 x H900+140 W795 x D500 40944 103

GAS GRIDDLE • AFTER SALES SERVICE
• Side plate: aluminium
• Griddle thickness: 16mm
• Bottom side plate thickness 1.2mm
• Hight quality food grade stainless steel
Model: LFP-400S Model: LFP-600S Model: LFP-900S
Model Dimensions(mm) Cooking area(mm) Gas consumption(Btu/hr) Net weight(kg)
LFP-400S W404 x D660 x H400 W400 x D482 25000 30
LFP-600S W604 x D660 x H400 W560 x D482 50000 52
LFP-900S W904 x D660 x H400 W900 x D482 75000 80
