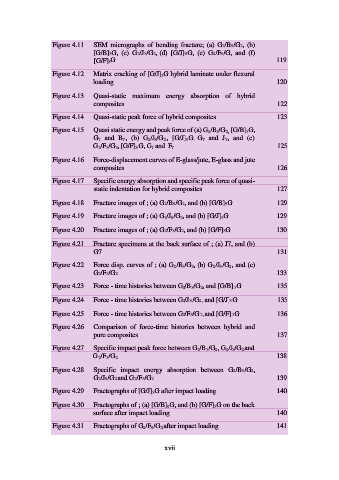

Figure 4.11    SEM  micrographs  of  bending  fracture;  (a)  G2/B3/G2,  (b)
                                  [G/B]3G,  (c)  G2/J3/G2,  (d)  [G/J]3G,  (e)  G2/F3/G,  and  (f)
                                  [G/F]3G                                                         119


                   Figure 4.12    Matrix cracking of [G/J]3G hybrid laminate under flexural
                                  loading                                                         120

                   Figure 4.13    Quasi-static  maximum  energy  absorption  of  hybrid
                                  composites                                                      122

                   Figure 4.14    Quasi-static peak force of hybrid composites                    123

                   Figure 4.15    Quasi static energy and peak force of (a) G2/B3/G2, [G/B]3G,
                                  G7  and  B7,  (b)  G2/J3/G2,  [G/J]3G,  G7  and  J7,  and  (c)
                                  G2/F3/G2, [G/F]3G, G7 and  F7                                   125

                   Figure 4.16    Force-displacement curves of E-glass/jute, E-glass and jute
                                  composites                                                      126

                   Figure 4.17    Specific energy absorption and specific peak force of quasi-
                                  static indentation for hybrid composites                        127

                   Figure 4.18    Fracture images of ; (a) G2/B3/G2, and (b) [G/B]3G              129

                   Figure 4.19    Fracture images of ; (a) G2/J3/G2, and (b) [G/J]3G              129

                   Figure 4.20    Fracture images of ; (a) G2/F3/G2, and (b) [G/F]3G              130

                   Figure 4.21    Fracture specimens at the back surface of ; (a) J7, and (b)
                                  G7                                                              131


                   Figure 4.22    Force disp. curves of ; (a) G2/B3/G2, (b) G2/J3/G2, and (c)
                                  G2/F3/G2                                                        133

                   Figure 4.23    Force - time histories between G2/B3/G2, and [G/B]3G            135

                   Figure 4.24    Force - time histories between G2/J3/G2, and [G/J]3G            135

                   Figure 4.25    Force - time histories between G2/F3/G2, and [G/F]3G            136

                   Figure 4.26    Comparison  of  force-time  histories  between  hybrid  and
                                  pure composites                                                 137


                   Figure 4.27    Specific impact peak force between G2/B3/G2, G2/J3/G2 and
                                  G2/F3/G2                                                        138

                   Figure 4.28    Specific  impact  energy  absorption  between  G2/B3/G2,
                                  G2/J3/G2 and G2/F3/G2                                           139

                   Figure 4.29    Fractographs of [G/J]3G after impact loading                    140

                   Figure 4.30    Fractographs of ; (a) [G/B]3G, and (b) [G/F]3G on the back
                                  surface after impact loading                                    140

                   Figure 4.31    Fractographs of G2/F3/G2 after impact loading                   141


                                                           xvii
