MODUL • Fizik TINGKATAN 5

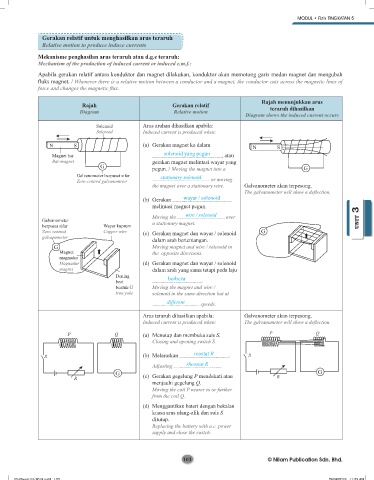

Gerakan relatif untuk menghasilkan arus teraruh
Relative motion to produce induce currents

Mekanisme penghasilan arus teraruh atau d.g.e teraruh:
Mechanism of the production of induced current or induced e.m.f.:

Apabila gerakan relatif antara konduktor dan magnet dilakukan, konduktor akan memotong garis medan magnet dan mengubah
fluks magnet. / Whenever there is a relative motion between a conductor and a magnet, the conductor cuts across the magnetic lines of
force and changes the magnetic flux.

Rajah menunjukkan arus
Rajah Gerakan relatif
Diagram Relative motion teraruh dihasilkan
Diagram shows the induced current occurs
Solenoid Arus aruhan dihasilkan apabila:
Solenoid Induced current is produced when:

(a) Gerakan magnet ke dalam
Magnet bar solenoid yang pegun , atau
Bar magnet gerakan magnet melintasi wayar yang
pegun. / Moving the magnet into a
Galvanometer berpusat sifar stationary solenoid
Zero centred galvanometer or moving
the magnet over a stationary wire. Galvanometer akan terpesong.
The galvanometer will show a deflection.
(b) Gerakan wayar / solenoid
melintasi magnet pegun.
Moving the wire / solenoid over
Galvanometer a stationary magnet. UNIT 3
berpusat sifar Wayar kuprum
Zero centred Copper wire (c) Gerakan magnet dan wayar / solenoid
UNIT 3
galvanometer
dalam arah bertentangan.
Moving magnet and wire / solenoid in
Magnet the opposite directions.
magnadur
Magnadur (d) Gerakan magnet dan wayar / solenoid
magnet dalam arah yang sama tetapi pada laju
Dening berbeza
besi .
bentuk-U Moving the magnet and wire /
Iron yoke solenoid in the same direction but at
different speeds.

Arus teraruh dihasilkan apabila: Galvanometer akan terpesong.
Induced current is produced when: The galvanometer will show a deflection.
P Q (a) Menutup dan membuka suis S. P Q
Closing and opening switch S.

S (b) Melaraskan reostat R . S
Adjusting rheostat R .

R (c) Gerakan gegelung P mendekati atau R
menjauhi gegelung Q.
Moving the coil P nearer to or further
from the coil Q.
(d) Menggantikan bateri dengan bekalan
kuasa arus ulang-alik dan suis S
ditutup.
Replacing the battery with a.c. power
supply and close the switch.

103 © Nilam Publication Sdn. Bhd.
