MODUL • Fizik TINGKATAN 5

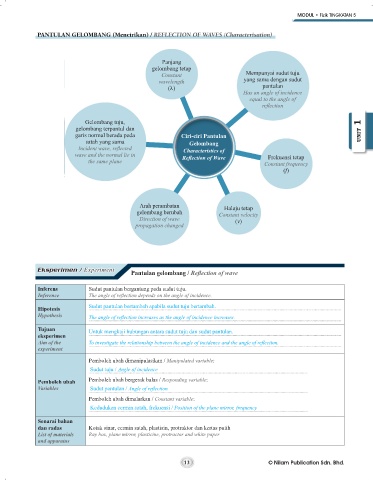

PANTULAN GELOMBANG (Mencirikan) / REFLECTION OF WAVES (Characterisation)

Panjang
gelombang tetap
Constant Mempunyai sudut tuju
wavelength yang sama dengan sudut
(λ) pantulan
Has an angle of incidence
equal to the angle of
reflection

Gelombang tuju,
gelombang terpantul dan UNIT 1
garis normal berada pada Ciri-ciri Pantulan
satah yang sama Gelombang
Incident wave, reflected Characteristics of
wave and the normal lie in Reflection of Wave Frekuensi tetap
the same plane Constant frequency
(f)

Arah perambatan Halaju tetap
gelombang berubah Constant velocity
Direction of wave (v)
propagation changed

Eksperimen / Experiment Pantulan gelombang / Reflection of wave

Inferens Sudut pantulan bergantung pada sudut tuju.
Inference The angle of reflection depends on the angle of incidence.

Hipotesis Sudut pantulan bertambah apabila sudut tuju bertambah.
Hypothesis The angle of reflection increases as the angle of incidence increases.

Tujuan Untuk mengkaji hubungan antara sudut tuju dan sudut pantulan.
eksperimen
Aim of the To investigate the relationship between the angle of incidence and the angle of reflection.
experiment

Pemboleh ubah dimanipulasikan / Manipulated variable:
Sudut tuju / Angle of incidence
Pemboleh ubah Pemboleh ubah bergerak balas / Responding variable:
Variables Sudut pantulan / Angle of reflection
Pemboleh ubah dimalarkan / Constant variable:
Kedudukan cermin satah, frekuensi / Position of the plane mirror, frequency
Senarai bahan
dan radas Kotak sinar, cermin satah, plastisin, protraktor dan kertas putih
List of materials Ray box, plane mirror, plasticine, protractor and white paper
and apparatus

13 © Nilam Publication Sdn. Bhd.
