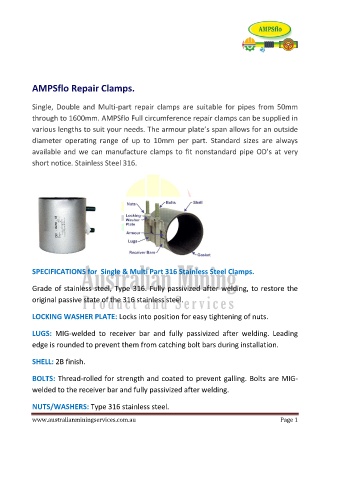

AMPSflo Repair Clamps.
Single, Double and Multi-part repair clamps are suitable for pipes from 50mm
through to 1600mm. AMPSflo Full circumference repair clamps can be supplied in
various lengths to suit your needs. The armour plate’s span allows for an outside
diameter operating range of up to 10mm per part. Standard sizes are always
available and we can manufacture clamps to fit nonstandard pipe OD’s at very
short notice. Stainless Steel 316.
SPECIFICATIONS for Single & Multi Part 316 Stainless Steel Clamps.
Grade of stainless steel, Type 316. Fully passivized after welding, to restore the
original passive state of the 316 stainless steel.
LOCKING WASHER PLATE: Locks into position for easy tightening of nuts.
LUGS: MIG-welded to receiver bar and fully passivized after welding. Leading
edge is rounded to prevent them from catching bolt bars during installation.
SHELL: 2B finish.
BOLTS: Thread-rolled for strength and coated to prevent galling. Bolts are MIG-
welded to the receiver bar and fully passivized after welding.
NUTS/WASHERS: Type 316 stainless steel.
