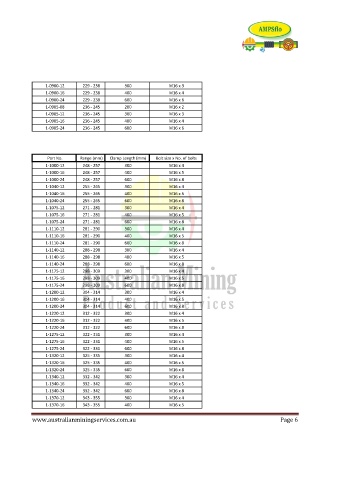

Page 45 - a compendium of pipe repair clamps - Pipe couplings and tapping equiptment 2016_Neat

1-0900-12 229 - 238 300 M16 x 3
1-0900-16 229 - 238 400 M16 x 4
1-0900-24 229 - 238 600 M16 x 6
1-0905-08 236 - 245 200 M16 x 2
1-0905-12 236 - 245 300 M16 x 3
1-0905-16 236 - 245 400 M16 x 4
1-0905-24 236 - 245 600 M16 x 6

Part No. Range (mm) Clamp Length (mm) Bolt size x No. of bolts
1-1000-12 248 - 257 300 M16 x 4
1-1000-16 248 - 257 400 M16 x 5
1-1000-24 248 - 257 600 M16 x 8
1-1040-12 255 - 265 300 M16 x 4
1-1040-16 255 - 265 400 M16 x 5
1-1040-24 255 - 265 600 M16 x 8
1-1075-12 271 - 281 300 M16 x 4
1-1075-16 271 - 281 400 M16 x 5
1-1075-24 271 - 281 600 M16 x 8
1-1110-12 281 - 290 300 M16 x 4
1-1110-16 281 - 290 400 M16 x 5
1-1110-24 281 - 290 600 M16 x 8
1-1140-12 288 - 298 300 M16 x 4
1-1140-16 288 - 298 400 M16 x 5
1-1140-24 288 - 298 600 M16 x 8
1-1175-12 298 - 309 300 M16 x 4
1-1175-16 298 - 309 400 M16 x 5
1-1175-24 298 - 309 600 M16 x 8
1-1200-12 304 - 314 300 M16 x 4
1-1200-16 304 - 314 400 M16 x 5
1-1200-24 304 - 314 600 M16 x 8
1-1220-12 312 - 322 300 M16 x 4
1-1220-16 312 - 322 400 M16 x 5
1-1220-24 312 - 322 600 M16 x 8
1-1275-12 322 - 331 300 M16 x 4
1-1275-16 322 - 331 400 M16 x 5
1-1275-24 322 - 331 600 M16 x 8
1-1320-12 325 - 335 300 M16 x 4
1-1320-16 325 - 335 400 M16 x 5
1-1320-24 325 - 335 600 M16 x 8
1-1340-12 332 - 342 300 M16 x 4
1-1340-16 332 - 342 400 M16 x 5
1-1340-24 332 - 342 600 M16 x 8
1-1370-12 343 - 355 300 M16 x 4
1-1370-16 343 - 355 400 M16 x 5
