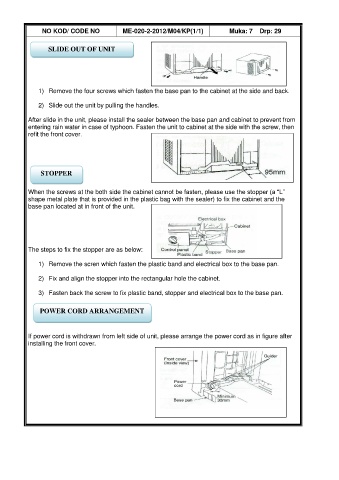

NO KOD/ CODE NO ME-020-2-2012/M04/KP(1/1) Muka: 7 Drp: 29

SLIDE OUT OF UNIT

1) Remove the four screws which fasten the base pan to the cabinet at the side and back.

2) Slide out the unit by pulling the handles.

After slide in the unit, please install the sealer between the base pan and cabinet to prevent from
entering rain water in case of typhoon. Fasten the unit to cabinet at the side with the screw, then
refit the front cover.

STOPPER

When the screws at the both side the cabinet cannot be fasten, please use the stopper (a “L”
shape metal plate that is provided in the plastic bag with the sealer) to fix the cabinet and the
base pan located at in front of the unit.

The steps to fix the stopper are as below:

1) Remove the scren which fasten the plastic band and electrical box to the base pan.

2) Fix and align the stopper into the rectangular hole the cabinet.

3) Fasten back the screw to fix plastic band, stopper and electrical box to the base pan.

POWER CORD ARRANGEMENT

If power cord is withdrawn from left side of unit, please arrange the power cord as in figure after
installing the front cover.
