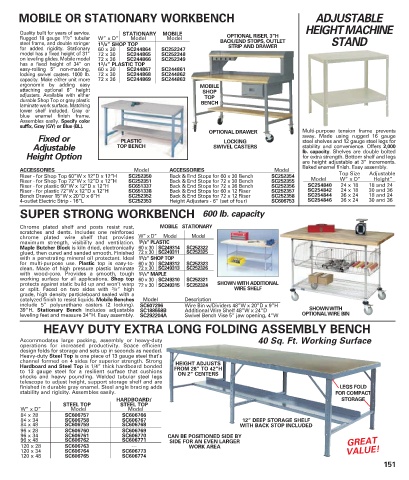

Page 151 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

MOBILE OR STATIONARY WORKBENCH ADJUSTABLE
HEIGHT MACHINE
Q u b y t i l a y r o f t l i u e . e c i v r e s f o s r a STATIONARY MOBILE
1
Rugged 18 gauge 1 /2” tubular W” x D” Model Model OPTIONAL RISER, 3”H STAND
steel frame, and double stringer 1 5 /8” SHOP TOP BACK/END STOPS, OUTLET
for added rigidity. Stationary 60 x 30 SC244864 SC252347 STRIP AND DRAWER
model has a fixed height of 31” 72 x 30 SC244865 SC252348
on leveling glides. Mobile model 72 x 36 SC244866 SC252349
has a fixed height of 34” on 1 3 /4” PLASTIC TOP
easy-rolling 5” non-marking, 60 x 30 SC244867 SC244861
locking swivel casters. 1000 lb. 72 x 30 SC244868 SC244862
capacity. Make either unit more 72 x 36 SC244869 SC244863
ergonomic by adding easy MOBILE
attaching optional 6” height SHOP
adjusters. Available with either TOP
durable Shop Top or gray plastic BENCH
laminate work surface. Matching
lower shelf included. Gray or
blue enamel finish frame.
Assembles easily. Specify color
suffix, Gray (GY) or Blue (BL).
OPTIONAL DRAWER Multi-purpose tension frame prevents
Fixed or PLASTIC LOCKING sway. Made using rugged 16 gauge
steel shelves and 12 gauge steel legs for
Adjustable TOP BENCH SWIVEL CASTERS stability and convenience. Offers 2,000
Height Option lb. capacity. Shelves are double bolted
for extra strength. Bottom shelf and legs
are height adjustable at 3” increments.
ACCESSORIES Model ACCESSORIES Model Baked enamel finish. Easy assembly.
Riser - for Shop Top 60”W x 12”D x 12”H SC252350 Back & End Stops for 60 x 30 Bench SC252354 Top Size Adjustable
Riser - for Shop Top 72”W x 12”D x 12”H SC252351 Back & End Stops for 72 x 30 Bench SC252355 Model W” x D” Height”
Riser - for plastic 60”W x 12”D x 12”H SC651337 Back & End Stops for 72 x 36 Bench SC252356 SC254840 24 x 18 18 and 24
Riser - for plastic 72”W x 12”D x 12”H SC651338 Back & End Stops for 60 x 12 Riser SC252357 SC254842 24 x 18 30 and 36
Bench Drawer 15”W x 20”D x 6”H SC252352 Back & End Stops for 72 x 12 Riser SC252358 SC254844 36 x 24 18 and 24
4-outlet Electric Strip - 16”L SC252353 Height Adjusters - 6” (set of four) SC606753 SC254846 36 x 24 30 and 36
SUPER STRONG WORKBENCH 600 lb. capacity
Chrome plated shelf and posts resist rust, MOBILE STATIONARY
scratches and dents. Includes one reinforced
chrome plated wire shelf that provides W” x D” Model Model
maximum strength, visibility and ventilation. 1 5 /8” PLASTIC
Maple Butcher Block is kiln dried, electronically 60 x 30 SC249314 SC252322
glued, then cured and sanded smooth. Finished 72 x 30 SC249311 SC252325
with a penetrating mineral oil protectant. Ideal 1 1 /2” SHOP TOP
for multi-purpose use. Plastic top is easy-to- 60 x 30 SC249312 SC252323
clean. Made of high pressure plastic laminate 72 x 30 SC249313 SC252326
with wood-core. Provides a smooth, tough 1 3 /4” MAPLE
working surface for all applications. Shop top 60 x 30 SC249310 SC252321
protects against static build up and won’t warp 72 x 30 SC249315 SC252324 SHOWN WITH ADDITIONAL
or split. Faced on two sides with 3 /8” high WIRE SHELF
grade, high density particleboard sealed with a
catalyzed finish to resist liquids. Mobile Benches Model Description
include 5” polyurethane casters (2 locking). SC607296 Wire Bin w/Dividers 48”W x 20”D x 9”H
39”H. Stationary Bench includes adjustable SC188558B Additional Wire Shelf 48”W x 24”D SHOWN WITH
leveling feet and measure 34”H. Easy assembly. SC292204A Swivel Bench Vise 5” jaw opening, 4”W OPTIONAL WIRE BIN
HEAVY DUTY EXTRA LONG FOLDING ASSEMBLY BENCH
Accommodates large packing, assembly or heavy-duty 40 Sq. Ft. Working Surface
operations for increased productivity. Space efficient
design folds for storage and sets up in seconds as needed.
Heavy-duty Steel Top is one piece of 13 gauge steel that’s
channel formed on 4 sides for superior strength. Strong HEIGHT ADJUSTS
Hardboard and Steel Top is 1/4” thick hardboard bonded FROM 28” TO 42”H
to 13 gauge steel for a resilient surface that cushions ON 2” CENTERS
shocks and heavy pounding. Welded tubular steel legs
telescope to adjust height, support storage shelf and are
finished in durable gray enamel. Steel angle bracing adds LEGS FOLD
stability and rigidity. Assembles easily. FOR COMPACT
HARDBOARD/ STORAGE
STEEL TOP STEEL TOP
W” x D” Model Model
84 x 28 SC606757 SC606766
84 x 34 SC606758 SC606767 12” DEEP STORAGE SHELF
84 x 48 SC606759 SC606768 WITH BACK STOP INCLUDED
96 x 28 SC606760 SC606769
96 x 34 SC606761 SC606770 CAN BE POSITIONED SIDE BY
96 x 48 SC606762 SC606771 SIDE FOR AN EVEN LARGER GREAT
120 x 28 SC606763 --- WORK AREA
120 x 34 SC606764 SC606773 VALUE!
120 x 48 SC606765 SC606774
