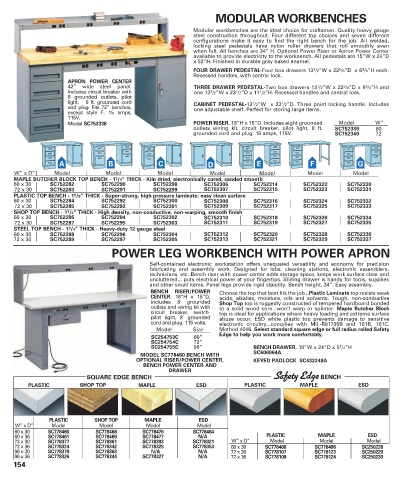

Page 154 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

MODULAR WORKBENCHES
Modular workbenches are the ideal choice for craftsmen. Quality heavy gauge
steel construction throughout. Four different top choices and seven different
configurations make it easy to find the right bench for the job. All welded,
locking steel pedestals have nylon roller drawers that roll smoothly even
when full. All benches are 34” H. Optional Power Riser or Apron Power Center
available to provide electricity to the workbench. All pedestals are 15”W x 24”D
x 32”H. Finished in durable gray baked enamel.
FOUR DRAWER PEDESTAL-Four box drawers 13 1 /2”W x 22 5 /8”D x 6 3 /4”H each.
Recessed handles, with central lock.
APRON POWER CENTER
42” wide steel panel. THREE DRAWER PEDESTAL-Two box drawers 13 1 /2”W x 22 5 /8”D x 6 3 /4”H and
Includes circuit breaker with one 13 1 /2”W x 23 1 /2”D x 11 1 /2”H. Recessed handles and central lock.
8 grounded outlets, pilot
light, 8 ft. grounded cord CABINET PEDESTAL-13 1 /2”W x 23 1 /2”D. Three point locking handle. Includes
and plug. Fits 72” benches, one adjustable shelf. Perfect for storing large items.
except style F. 15 amps,
115V.
Model SC752338 POWER RISER. 18”H x 15”D. Includes eight grounded Model W”
outlets wiring kit, circuit breaker, pilot light, 8 ft. SC752339 60
grounded cord and plug. 15 amps, 115V. SC752340 72

A B C D E F G
W” x D” Model Model Model Model Model Model Model
MAPLE BUTCHER BLOCK TOP BENCH - 1 3 /4” THICK - Kiln dried, electronically cured, sanded smooth
60 x 30 SC752282 SC752290 SC752298 SC752306 SC752314 SC752322 SC752330
72 x 30 SC752283 SC752291 SC752299 SC752307 SC752315 SC752323 SC752331
PLASTIC TOP BENCH - 1 5 /8” THICK - Super-strong, high pressure laminate, easy clean surface
60 x 30 SC752284 SC752292 SC752300 SC752308 SC752316 SC752324 SC752332
72 x 30 SC752285 SC752293 SC752301 SC752309 SC752317 SC752325 SC752333
SHOP TOP BENCH - 1 1 /2” THICK - High density, non-conductive, non-warping, smooth finish
60 x 30 SC752286 SC752294 SC752302 SC752310 SC752318 SC752326 SC752334
72 x 30 SC752287 SC752295 SC752303 SC752311 SC752319 SC752327 SC752335
STEEL TOP BENCH - 1 3 /4” THICK - Heavy-duty 12 gauge steel
60 x 30 SC752288 SC752296 SC752304 SC752312 SC752320 SC752328 SC752336
72 x 30 SC752289 SC752297 SC752305 SC752313 SC752321 SC752329 SC752337
POWER LEG WORKBENCH WITH POWER APRON
Self-contained electronic workstation offers unequaled versatility and economy for precision
fabricating and assembly work. Designed for labs, cleaning stations, electronic assemblers,
technicians, etc. Bench riser with power center adds storage space, keeps work surface clear and
uncluttered... puts electrical power at your fingertips. Sliding drawer is handy for tools, supplies
and other small items. Panel legs provide rigid stability. Bench height, 34”. Easy assembly.
BENCH RISER/POWER Choose the top that best fits the job...Plastic Laminate top resists weak
CENTER. 18”H x 15”D, acids, alkalies, moisture, oils and solvents. Tough, non-conductive
includes 8 grounded Shop Top top is ruggedly constructed of tempered hardboard bonded
outlets and wiring kit with to a solid wood core...won’t warp or splinter. Maple Butcher Block
circuit breaker, switch- top is ideal for applications where heavy loading and extreme surface
pilot light, 8’ grounded abuse occur. ESD white plastic top prevents damage to sensitive
cord and plug. 115 volts. electronic circuitry...complies with MIL-B81705B and 101B, 101C,
Model Size Method 4046. Select standard square edge or full radius rolled Safety
SC254753C 60” Edge to help you work more comfortably.
SC254754C 72”
1
SC254755C 96” BENCH DRAWER. 18”W x 24”D x 5 /4”H
MODEL SC778460 BENCH WITH SC606964A
OPTIONAL RISER/POWER CENTER, KEYED PADLOCK SC432248A
BENCH POWER CENTER AND
DRAWER
SQUARE EDGE BENCH BENCH
PLASTIC SHOP TOP MAPLE ESD PLASTIC MAPLE ESD

PLASTIC SHOP TOP MAPLE ESD
W” x D” Model Model Model Model
60 x 30 SC778460 SC778468 SC778476 SC778484
60 x 36 SC778461 SC778469 SC778477 N/A PLASTIC MAPLE ESD
72 x 30 SC778377 SC778361 SC778393 SC778321 W” x D” Model Model Model
72 x 36 SC778324 SC778342 SC778325 SC778353 60 x 30 SC778488 SC778496 SC250228
96 x 30 SC778379 SC778363 N/A N/A 72 x 30 SC778107 SC778123 SC250229
96 x 36 SC778326 SC778344 SC778327 N/A 72 x 36 SC778108 SC778124 SC250230
