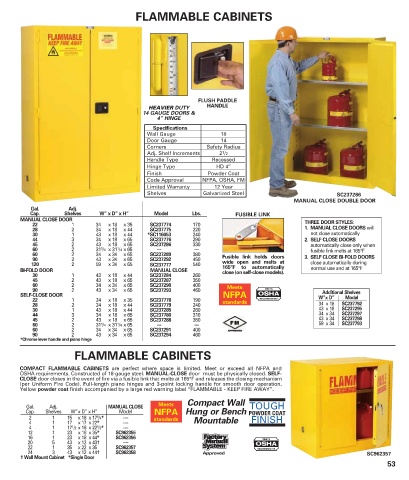

Page 53 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

FLAMMABLE CABINETS

FLUSH PADDLE
HEAVIER DUTY HANDLE
14 GAUGE DOORS &
4” HINGE
Specifications
Wall Gauge 18
Door Gauge 14
Corners Safety Radius
Adj. Shelf Increments 2 1 /2
Handle Type Recessed
Hinge Type HD 4’’
Finish Powder Coat
Code Approval NFPA, OSHA, FM
Limited Warranty 12 Year
Shelves Galvanized Steel SC237286
MANUAL CLOSE DOUBLE DOOR
Gal. Adj.
Cap. Shelves W” x D” x H” Model Lbs. FUSIBLE LINK
MANUAL CLOSE DOOR THREE DOOR STYLES:
22 1 34 x 18 x 35 SC237774 170
28 2 34 x 18 x 44 SC237775 220 1. MANUAL CLOSE DOORS will
30 1 43 x 18 x 44 *SC116053 240 not close automatically
44 3 34 x 18 x 65 SC237776 290 2. SELF CLOSE DOORS
45 2 43 x 18 x 65 SC237286 330 automatically close only when
60 2 31 1 /4 x 31 1 /4 x 65 --- --- fusible link melts at 165°F
60 2 34 x 34 x 65 SC237289 380 Fusible link holds doors 3. SELF CLOSE BI-FOLD DOORS
90 2 43 x 34 x 65 SC237292 450
120 2 59 x 34 x 65 SC237777 540 wide open and melts at close automatically during
BI-FOLD DOOR MANUAL CLOSE 165°F to automatically normal use and at 165°F
close (on self-close models).
30 1 43 x 18 x 44 SC237284 260
45 2 43 x 18 x 65 SC237287 350
60 2 34 x 34 x 65 SC237290 400 Meets
90 2 43 x 34 x 65 SC237293 460 MEETS Additional Shelves
SELF-CLOSE DOOR NFPA W”x D” Model
22 1 34 x 18 x 35 SC237778 190 standards REQUIREMENTS
28 2 34 x 18 x 44 SC237779 240 34 x 18 SC237792
30 1 43 x 18 x 44 SC237285 260 43 x 18 SC237295
44 3 34 x 18 x 65 SC237780 310 34 x 34 SC237297
45 2 43 x 18 x 65 SC237288 350 43 x 34 SC237298
60 2 31 1 /4 x 31 1 /4 x 65 --- --- 59 x 34 SC237793
60 2 34 x 34 x 65 SC237291 400
90 2 43 x 34 x 65 SC237294 460
*Chrome lever handle and piano hinge
FLAMMABLE CABINETS
COMPACT FLAMMABLE CABINETS are perfect where space is limited. Meet or exceed all NFPA and
OSHA requirements. Constructed of 18-gauge steel. MANUAL-CLOSE door must be physically closed. SELF-
CLOSE door closes in the event of fire via a fusible link that melts at 165°F and releases the closing mechanism
(per Uniform Fire Code). Full-length piano hinges and 3-point locking handle for smooth door operation.
Yellow powder coat finish accompanied by a large red warning label “FLAMMABLE - KEEP FIRE AWAY”.
Gal. Adj. MANUAL CLOSE Meets Compact Wall TOUGH
Cap. Shelves W” x D” x H” Model NFPA Hung or Bench POWDER COAT
2 1 15 x 18 x 17 1 /4* ---- standards Mountable FINISH
4 1 17 x 17 x 22* ----
4 1 17 1 /2 x 18 x 22 1 /2* ----
12 1 23 x 18 x 35* SC962355
16 1 23 x 18 x 44* SC962356 MEETS
20 5 43 x 12 x 43† ----
22 1 35 x 22 x 35 SC962357 REQUIREMENTS
24 3 43 x 12 x 44† SC962358 SC962357
† Wall Mount Cabinet *Single Door
