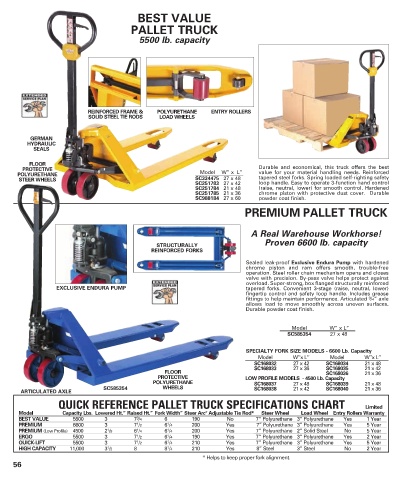

Page 56 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

BEST VALUE
PALLET TRUCK
5500 lb. capacity

REINFORCED FRAME & POLYURETHANE ENTRY ROLLERS
SOLID STEEL TIE RODS LOAD WHEELS

GERMAN
HYDRAULIC
SEALS
FLOOR
PROTECTIVE Durable and economical, this truck offers the best
POLYURETHANE Model W” x L” value for your material handling needs. Reinforced
STEER WHEELS SC334475 27 x 48 tapered steel forks. Spring loaded self-righting safety
SC251783 27 x 42 loop handle. Easy to operate 3-function hand control
SC251784 21 x 48 (raise, neutral, lower) for smooth control. Hardened
SC251785 21 x 36 chrome piston with protective dust cover. Durable
SC988184 27 x 60 powder coat finish.
PREMIUM PALLET TRUCK

A Real Warehouse Workhorse!

STRUCTURALLY Proven 6600 lb. capacity
REINFORCED FORKS
Sealed leak-proof Exclusive Endura Pump with hardened
chrome piston and ram offers smooth, trouble-free
operation. Steel roller chain mechanism opens and closes
valve with precision. By-pass valve helps protect against
overload. Super-strong, box flanged structurally reinforced
EXCLUSIVE ENDURA PUMP tapered forks. Convenient 3-stage (raise, neutral, lower)
fingertip control and safety loop handle. Includes grease
fittings to help maintain performance. Articulated 3 /4” axle
allows load to move smoothly across uneven surfaces.
Durable powder coat finish.

Model W” x L”
SC585354 27 x 48

SPECIALTY FORK SIZE MODELS - 6600 Lb. Capacity
Model W’’x L’’ Model W’’x L’’
SC168032 27 x 42 SC168034 21 x 48
SC168033 27 x 36 SC168035 21 x 42
FLOOR SC168036 21 x 36
PROTECTIVE LOW PROFILE MODELS - 4500 Lb. Capacity
POLYURETHANE SC168037 27 x 48 SC168039 21 x 48
SC585354 WHEELS SC168038 21 x 42 SC168040 21 x 36
ARTICULATED AXLE
QUICK REFERENCE PALLET TRUCK SPECIFICATIONS CHART

Limited
Model Capacity Lbs. Lowered Ht.” Raised Ht.” Fork Width” Steer Arc° Adjustable Tie Rod* Steer Wheel Load Wheel Entry Rollers Warranty

BEST VALUE 5500 3 7 3 /4 6 190 No 7” Polyurethane 3” Polyurethane Yes 1 Year
PREMIUM 6600 3 7 1 /2 6 1 /4 200 Yes 7” Polyurethane 3” Polyurethane Yes 5 Year
PREMIUM (Low Profile) 4500 2 1 /8 6 1 /4 6 1 /4 200 Yes 7” Polyurethane 2” Solid Steel No 5 Year
ERGO 5500 3 7 1 /2 6 1 /4 190 Yes 7” Polyurethane 3” Polyurethane Yes 2 Year
QUICK-LIFT 5500 3 7 1 /2 6 1 /4 210 Yes 7” Polyurethane 3” Polyurethane Yes 5 Year
HIGH CAPACITY 11,000 3 1 /2 8 8 1 /4 210 Yes 8” Steel 3” Steel No 2 Year
* Helps to keep proper fork alignment.
56
