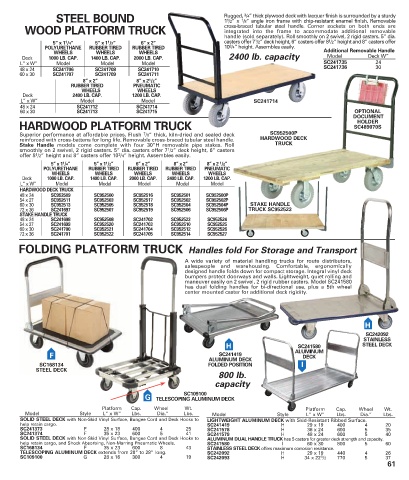

Page 61 - 2021-87 PMGSGLBL Material_Handling_Catalog_AP_V PMGS_Neat

STEEL BOUND Rugged, 3 /4” thick plywood deck with lacquer finish is surrounded by a sturdy
1 1 /2” x 1 /8” angle iron frame with chip-resistant enamel finish. Removable
WOOD PLATFORM TRUCK cross-braced tubular steel handle. Corner sockets on both ends are
integrated into the frame to accommodate additional removable
handle (sold separately). Roll smoothly on 2 swivel, 2 rigid casters. 5” dia.
5” x 1 1 /4” 5” x 1 1 /2” 6” x 2” casters offer 7 1 /2” deck height, 6” casters offer 8 1 /2” height and 8” casters offer
POLYURETHANE RUBBER TIRED RUBBER TIRED 10 3 /4” height. Assembles easily.
WHEELS WHEELS WHEELS Additional Removable Handle
Deck 1000 LB. CAP. 1400 LB. CAP. 2000 LB. CAP. 2400 lb. capacity Model Deck W”
L” x W” Model Model Model SC241735 24
48 x 24 SC241706 SC241708 SC241710 SC241736 30
SC241707
60 x 30 SC241709 SC241711
8” x 2” 8” x 2 1 /2”
RUBBER TIRED PNEUMATIC
WHEELS WHEELS
Deck 2400 LB. CAP. 1200 LB. CAP.
L” x W” Model Model SC241714
48 x 24 SC241712 SC241714
60 x 30 SC241713 SC241715 OPTIONAL
DOCUMENT
HOLDER
HARDWOOD PLATFORM TRUCK SC489070S
Superior performance at affordable prices. Flush 7 /8” thick, kiln-dried and sealed deck SC952500P
reinforced with cross-battens for long life. Removable cross-braced tubular steel handle. HARDWOOD DECK
Stake Handle models come complete with four 30”H removable pipe stakes. Roll TRUCK
smoothly on 2 swivel, 2 rigid casters. 5” dia. casters offer 7 1 /2” deck height, 6” casters
offer 8 1 /2” height and 8” casters offer 10 3 /4” height. Assembles easily.

5” x 1 1 /4” 5” x 1 1 /2” 6” x 2” 8” x 2” 8” x 2 1 /2”
POLYURETHANE RUBBER TIRED RUBBER TIRED RUBBER TIRED PNEUMATIC
WHEELS WHEELS WHEELS WHEELS WHEELS
Deck 1000 LB. CAP. 1400 LB. CAP. 2000 LB. CAP. 2400 LB. CAP. 1200 LB. CAP.
L” x W” Model Model Model Model Model
HARDWOOD DECK TRUCK
48 x 24 SC952509 SC952500 SC952516 SC952501 SC952500P
54 x 27 SC952511 SC952503 SC952517 SC952502 SC952502P
60 x 30 SC952513 SC952505 SC952518 SC952504 SC952504P STAKE HANDLE
72 x 36 SC241697 SC952507 SC952519 SC952506 SC952506P TRUCK SC952523
STAKE HANDLE TRUCK
48 x 24 SC241698 SC952508 SC241702 SC952523 SC952524
54 x 27 SC241699 SC952520 SC241703 SC952510 SC952525
60 x 30 SC241700 SC952521 SC241704 SC952512 SC952526
72 x 36 SC241701 SC952522 SC241705 SC952514 SC952527
FOLDING PLATFORM TRUCK Handles fold For Storage and Transport
A wide variety of material handling trucks for route distributors,
salespeople and warehousing. Comfortable, ergonomically
designed handle folds down for compact storage. Integral vinyl deck
bumpers protect doorways and walls. Lightweight, quiet rolling and
maneuver easily on 2 swivel, 2 rigid rubber casters. Model SC241580
has dual folding handles for bi-directional use, plus a 5th wheel
center mounted caster for additional deck rigidity.
H
SC242092
STAINLESS
H SC241580 STEEL DECK
F SC241419 ALUMINUM
DECK
ALUMINUM DECK
SC168134 FOLDED POSITION I
STEEL DECK
800 lb.
capacity
G SC109100
TELESCOPING ALUMINUM DECK
Platform Cap. Wheel Wt. Platform Cap. Wheel Wt.
Model Style L” x W” Lbs. Dia.” Lbs. Model Style L” x W” Lbs. Dia.” Lbs.
SOLID STEEL DECK with Non-Skid Vinyl Surface, Bungee Cord and Deck Hooks to LIGHTWEIGHT ALUMINUM DECK with Skid-Resistant Ribbed Surface.
help retain cargo. SC241419 H 29 x 19 400 4 20
SC241373 F 28 x 18 400 4 25 SC241578 H 36 x 24 600 5 35
SC241374 F 35 x 23 600 5 41 SC241579 H 48 x 24 600 5 40
SOLID STEEL DECK with Non-Skid Vinyl Surface, Bungee Cord and Deck Hooks to ALUMINUM DUAL HANDLE TRUCK has 5 casters for greater deck strength and capacity.
help retain cargo, and Shock Absorbing, Non-Marring Pneumatic Wheels. SC241580 I 60 x 30 800 5 60
SC168134 F 35 x 23 600 8 43 STAINLESS STEEL DECK offers maximum corrosion resistance.
TELESCOPING ALUMINUM DECK extends from 20” to 28” long. SC242092 H 29 x 19 440 4 26
SC109100 G 28 x 16 300 4 19 SC242093 H 34 x 22 1 /2 770 5 37
61
