P. 28
28

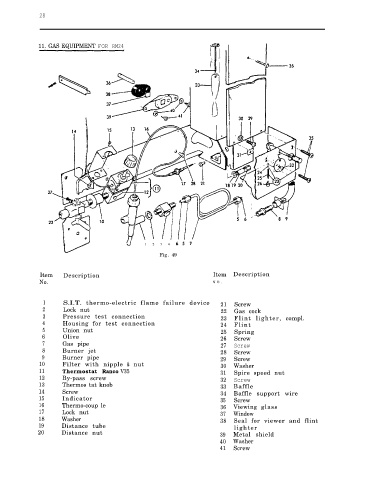

11. GAS EQUIPMENT FOR RM24
1 2 3 4
Fig. 49
Item Description Item Description
No. N O .
1 S.I.T. thermo-electric flame failure device 21 Screw
2 Lock nut 22 Gas cock
3 Pressure test connection 23 Flint lighter, compl.
4 Housing for test connection 24 Flint
5 Union nut 25 Spring
6 Olive 26 Screw
7 Gas pipe 27 Screw
8 Burner jet 28 Screw
9 Burner pipe 29 Screw
10 Filter with nipple & nut 30 Washer
11 Thermostat Ranco V35 31 Spire speed nut
12 By-pass screw 32 Screw
13 Thermos tat knob 33 Baffle
14 Screw 34 Baffle support wire
15 Indicator 35 Screw
16 Thermo-coup le 36 Viewing glass
17 Lock nut 37 Window
18 Washer 38 Seal for viewer and flint
19 Distance tube lighter
20 Distance nut 39 Metal shield
40 Washer
41 Screw
