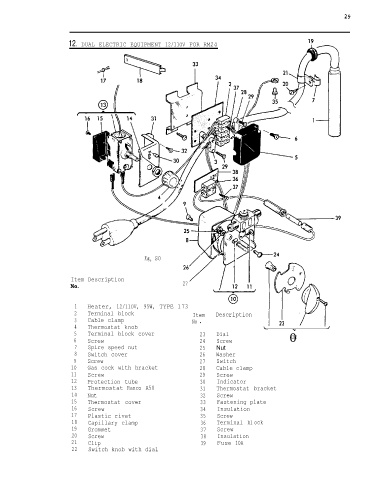

12. DUAL ELECTRIC EQUIPMENT 12/11OV FOR RM24
Fig. SO
Item Description
No. 27
1 Heater, 12/11OV, 95W, TYPE 173
2 Terminal block Item Description
3 Cable clamp
4 Thermostat knob No l
5 Terminal block cover 23 Dial 0
22
6 Screw 24 Screw
7 Spire speed nut 25 Nut
8 Switch cover 26 Washer
9 Screw 27 Switch
10 Gas cock with bracket 28 Cable clamp
11 Screw 29 Screw
12 Protection tube 30 Indicator
13 Thermostat Ranco A50 31 Thermostat bracket
14 Nut 32 Screw
15 Thermostat cover 33 Fastening plate
16 Screw 34 Insulation
17 Plastic rivet 35 Screw
18 Capillary clamp 36 Terminal bl ock
19 Grommet 37 Screw
20 Screw 38 Insulation
21 Clip 39 Fuse 10A
22 Switch knob with dial
