150




                                       110mm thk.Brickwall with
                                       20mm thk.plastering on
                                       both sides
                                       75mm x 25mm skirting
                                       20mm thk. Floor finishes

                                       150mm thk.R.C floor slab                                                                                    Ground Floor Level
                                       DPM layer

                                                                                                      900                        225
                                       50 mm thk.Sand screed
                                                                                                                                                    Apron Level
                                       150mm thk. Hardcore                                                                                          Ground Level





                                                                                                                       100                          Conc.Drain to Engr's
                                       R.C Ground Beam to                                                                                          Detail
                                       engr's detail
                                                                                                                                 425









                                       R.C Footing to engr's                                    200
                                       detail


                                                                               550

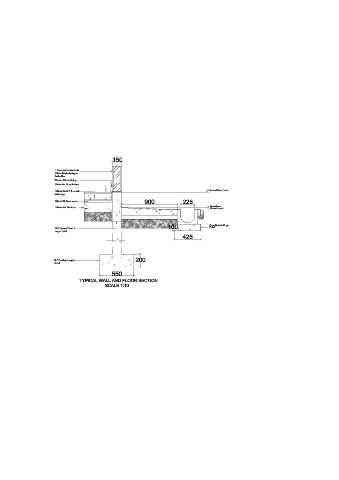

                                                        TYPICAL WALL AND FLOOR SECTION
                                                                             SCALE 1:10
