30°

Ridge cap to engr's detail

Aluminium foil / insulation sheet Aluminium Foil/ Insulation sheet

37mm thk.Tiles roofing Selected conc.roof tiles at 30° to arch's approval
25mm x 50mm thk.H.W batten
150mm x 50mm thk.H.W Rafter
at 300 c/c

150mm x 50mm thk. H.W rafter
supporter 100mm x 50mm thk. H.W struts

100mm x 50mm thk. H.W Struts

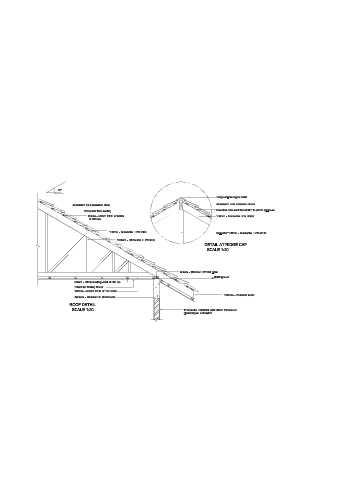

DETAIL AT RIDGE CAP
SCALE 1:20

50mm x 100mm H.W wall plate
Celiling level

50mm x 50mm Ceiling Joist at 600 c/c
10mm thk.Ceiling Sheet
100mm x 50mm thk.H.W Tie Beam
250mm x 25 fascia board
450mm x 150mm R.C Roof Beam

ROOF DETAIL
SCALE 1:20 110mm thk. Brickwall with 20mm thk.cement
plastering on bothside's
