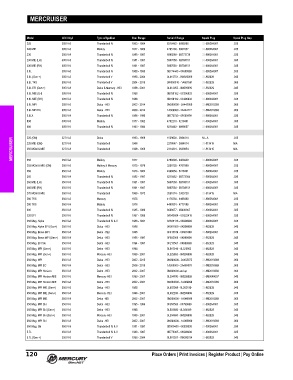

Page 133 - US ACCESSORIES GUIDE (2019)
P. 133
MERCRUISER
Model CID/ #Cyl Type of Ignition Year Range Serial # Range Spark Plug Spark Plug Gap
228 305/ V-8 Thunderbolt IV 1983 - 1984 6218462 - 6899268 33-898264001 .035
228 MIE 305/ V-8 Mallory 1977 - 1980 4765100 - 5907057 33-898264001 .035
230 305/ V-8 Thunderbolt IV 1985 - 1987 6899269 - 0B773739 33-898264001 .035
230 MIE (LH) 305/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 33-898264001 .035
230 MIE (RH) 305/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 33-898264001 .035
5.0L 305/ V-8 Thunderbolt IV 1988 - 1995 0B774445 - 0F600999 33-898264001 .035
5.0L (Gen +) 305/ V-8 Thunderbolt V 1998 - 2004 0L015751 - 0W300009 33-862029 .045
5.0L TKS 305/ V-8 Thunderbolt V 2004 - 2010 0W300010 - 1A607561 33-862029 .060
5.0L EFI (Gen +) 305/ V-8 Delco & Mercury - HEI 1998 - 2001 0L012052 - 0M299999 33-862029 .045
5.0L MIE (LH) 305/ V-8 Thunderbolt IV 1988 0B788152 - 0C396832 33-898264001 .035
5.0L MIE (RH) 305/ V-8 Thunderbolt IV 1988 0B788152 - 0C396832 33-898264001 .035
5.0L MPI 305/ V-8 Delco - HEI 2002 - 2014 0M300000 - 2A445009 33-8M2018369 .060
5.0L MPI EC 305/ V-8 Delco - HEI 2008 - 2014 1A300000 - 2A444777 33-8M2018369 .060
5.0LX 305/ V-8 Thunderbolt IV 1988 - 1995 0B773740 - 0F600999 33-898264001 .035
898 305/ V-8 Mallory 1977 - 1982 4762210 - 6218461 33-898264001 .035
898 305/ V-8 Thunderbolt IV 1983 - 1984 6218462 - 6899057 33-898264001 .035
225 (GM) 327/ V-8 Delco 1963 - 1969 1539620 - 2694014 N.L.A. .035
MERCRUISER 225 MIE (GM) 327/ V-8 Thunderbolt 1968 2278647 - 2694014 33-813415 N/A
N/A
327/ V-8
Thunderbolt
1968 - 1969
33-813415
250 MCM & MIE
2314301 - 2639854
250
3258728 - 4767999
33-898264001
255 MCM & MIE (GM) 350/ V-8 Mallory 1977 4768000 - 4908849 33-898264001 .035
350/ V-8
Mallory & Mercury
.035
1975 - 1976
260 350/ V-8 Mallory 1978 - 1982 4908850 - 6218461 33-898264001 .035
260 350/ V-8 Thunderbolt IV 1982 - 1987 6218462 - 0B773304 33-898264001 .035
260 MIE (LH) 350/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 33-898264001 .035
260 MIE (RH) 350/ V-8 Thunderbolt IV 1981 - 1987 5907058 - 0B788151 33-898264001 .035
270 MCM & MIE 350/ V-8 Thunderbolt 1969 - 1972 2851074 - 3385720 33-813415 N/A
280 TRS 350/ V-8 Mercury 1975 4176250 - 4499390 33-898264001 .035
280 TRS 350/ V-8 Mallory 1976 4499391 - 4770199 33-898264001 .035
300 350/ V-8 Thunderbolt IV 1985 - 1986 6668677 - 0B430367 33-898264001 .035
320 EFI 350/ V-8 Thunderbolt IV 1987 - 1989 0A543604 - 0C622418 33-898264001 .035
350 Mag. Alpha 350/ V-8 Thunderbolt IV & V 1986 - 1997 0A635178 - 0K999999 33-898264001 .035
350 Mag. Alpha EFI (Gen+) 350/ V-8 Delco - HEI 1996 0K001509 - 0K999999 33-862029 .045
350 Mag. Bravo MPI 350/ V-8 Delco - HEI 1995 0F415189 - 0F601999 33-898264001 .035
350 Mag. Bravo MPI (Gen+) 350/ V-8 Delco - HEI 1996 - 1997 0F602000 - 0K999999 33-862029 .045
350 Mag. EFI Ski 350/ V-8 Delco - HEI 1994 - 1997 0F215561 - 0K999999 33-862029 .045
350 Mag. MPI (Gen+) 350/ V-8 Delco - HEI 1998 0L010019 - 0L325952 33-862029 .045
350 Mag. MPI (Gen+) 350/ V-8 Mercury -HEI 1999 - 2001 0L325953 - 0M299999 33-862029 .045
350 Mag. MPI 350/ V-8 Delco - HEI 2002 - 2015 0M300000 - 2A455872 33-8M2018369 .060
350 Mag. MPI EC 350/ V-8 Delco - HEI 2008 - 2015 1A300000 - 2A455878 33-8M2018369 .060
350 Mag. MPI Horizon 350/ V-8 Delco - HEI 2002 - 2007 0M300000 and up 33-8M2018369 .060
350 Mag. MPI Horizon MIE 350/ V-8 Mercury -HEI 1999 - 2001 0L304700 - 0M299999 33-8M0046007 .045
350 Mag. MPI Horizon MIE 350/ V-8 Delco - HEI 2002 - 2007 0M300000 - 1A089999 33-8M2018369 .060
350 Mag. MPI MIE (Gen+) 350/ V-8 Delco - HEI 1998 0L002008 - 0L302199 33-862029 .045
350 Mag. MPI MIE (Gen+) 350/ V-8 Mercury -HEI 1998 - 2001 0L302200 - 0M299999 33-862029 .045
350 Mag. MPI MIE 350/ V-8 Delco -HEI 2002 - 2007 0M300000 - 1A089999 33-8M2018369 .060
350 Mag. MPI Ski 350/ V-8 Delco - HEI 1995 - 1996 0F350583 - 0F799999 33-898264001 .035
350 Mag. MPI Ski (Gen+) 350/ V-8 Delco - HEI 1998 0L002600 - 0L304599 33-862029 .045
350 Mag. MPI Ski (Gen+) 350/ V-8 Mercury -HEI 1999 - 2001 0L304600 - 0M299999 33-862029 .045
350 Mag. MPI Ski 350/ V-8 Delco -HEI 2002 - 2007 0M300000 - 1A089999 33-8M2018369 .060
350 Mag. Ski 350/ V-8 Thunderbolt IV & V 1991 - 1997 0D505450 - 0K999999 33-898264001 .035
5.7L 350/ V-8 Thunderbolt IV & V 1988 - 1997 0B773305 - 0K999999 33-898264001 .035
5.7L (Gen +) 350/ V-8 Thunderbolt V 1998 - 2004 0L010037 - 0W300754 33-862029 .045
