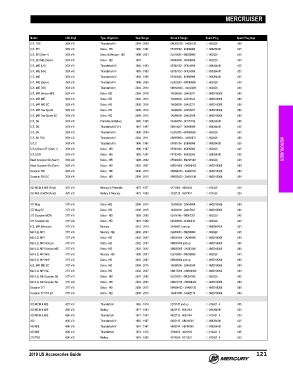

Page 134 - US ACCESSORIES GUIDE (2019)

MERCRUISER

Model CID/ #Cyl Type of Ignition Year Range Serial # Range Spark Plug Spark Plug Gap
5.7L TKS 350/ V-8 Thunderbolt V 2004 - 2009 0W300755 - 1A600136 33-862029 .060
5.7L EFI 350/ V-8 Delco - HEI 1995 - 1997 0F225560 - 0K999999 33-898264001 .035
5.7L EFI (Gen +) 350/ V-8 Delco & Mercury - HEI 1998 - 2001 0L010035 - 0M299999 33-862029 .045
5.7L EFI MIE (Gen+) 350/ V-8 Delco - HEI 1997 0K040300 - 0K999999 33-862029 .045
5.7L MIE (LH) 350/ V-8 Thunderbolt IV 1988 - 1993 0B788152 - 0F024999 33-898264001 .035
5.7L MIE (RH) 350/ V-8 Thunderbolt IV 1988 - 1993 0B788152 - 0F024999 33-898264001 .035
5.7L MIE 350/ V-8 Thunderbolt IV 1993 - 1995 0F025000 - 0K999999 33-898264001 .035
5.7L MIE (Gen+) 350/ V-8 Thunderbolt V 1998 - 2004 0L002003 - 0W090899 33-862029 .045
5.7L MIE TKS 350/ V-8 Thunderbolt V 2004 - 2010 0W090900 - 1A092388 33-862029 .060
5.7L MPI Horizon MIE 350/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A455371 33-8M2018369 .060
5.7L MPI MIE 350/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A455523 33-8M2018369 .060
5.7L MPI MIE EC 350/ V-8 Delco -HEI 2008 - 2016 1A090000 - 2A455371 33-8M2018369 .060
5.7L MPI Tow Sports 350/ V-8 Delco -HEI 2008 - 2016 1A090000 - 2A455977 33-8M2018369 .060
5.7L MPI Tow Sports EC 350/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A452508 33-8M2018369 .060
5.7L Ski 350/ V-8 Prestolite & Mallory 1985 - 1995 0A338553 - 0F775199 33-898264001 .035
5.7L Ski 350/ V-8 Thunderbolt IV & V 1987 - 1997 0B514627 - 0K999999 33-898264001 .035
5.7L Ski 350/ V-8 Thunderbolt V 1998 - 2004 0L002005 - 0W090899 33-862029 .045
5.7L Ski TKS 350/ V-8 Thunderbolt V 2004 - 2011 0W090900 - 1A092837 33-862029 .060
5.7LX 350/ V-8 Thunderbolt V 1996 - 1997 0F601000 - 0K999999 33-898264001 .035
5.7LX Bravo EFI (Gen +) 350/ V-8 Delco - HEI 1996 - 1997 0F800300 - 0K999999 33-862029 .045 MERCRUISER
5.7LX EFI 350/ V-8 Delco - HEI 1996 - 1997 0F752400 - 0K999999 33-898264001 .035
Black Scorpion Ski (Gen+) 350/ V-8 Delco - HEI 1996 - 2002 0F800000 - 0M391599 33-862029 .045
Black Scorpion Ski (Gen+) 350/ V-8 Delco - HEI 2003 - 2007 0M391600 - 0W698432 33-8M2018369 .060
Scorpion 350 350/ V-8 Delco - HEI 2008 - 2015 0W698433 - 2A460164 33-8M2018369 .060
Scorpion 350 EC 350/ V-8 Delco - HEI 2008 - 2015 0W698433 - 2A460148 33-8M2018369 .060

233 MCM & MIE (Ford) 351/ V-8 Mercury & Prestolite 1975 - 1977 4173000 - 4902304 33-813425 .030
255 MIE & MCM (Ford) 351/ V-8 Mallory & Mercury 1973 - 1980 3258728 - 5907057 33-813425 .030

377 Mag 377/ V-8 Delco -HEI 2008 - 2015 1A300000 - 2A455858 33-8M2018369 .060
377 Mag EC 377/ V-8 Delco -HEI 2008 - 2015 1A300000 - 2A455601 33-8M2018369 .060
377 Scorpion MCM 377/ V-8 Delco - HEI 1999 - 2005 0L416146 - 0M907201 33-862029 .045
377 Scorpion Ski 377/ V-8 Delco - HEI 1997 - 1998 0K000656 - 0L600314 33-862029 .045
6.2L MPI (Mercury) 377/ V-8 Mercury 2015 - 2019 2A456613 and up 33-8M0095454 .051
MX 6.2L MPI 377/ V-8 Mercury -HEI 2000 - 2001 0L680003 - 0M299999 33-862029 .045
MX 6.2L MPI 377/ V-8 Delco -HEI 2002 - 2007 0M300000 - 1A299999 33-8M2018369 .060
MX 6.2L MPI Horizon 377/ V-8 Delco -HEI 2002 - 2007 0M300000 and up 33-8M2018369 .060
MX 6.2L MPI Horizon MIE 377/ V-8 Delco -HEI 2002 - 2015 0M300000 - 2A452368 33-8M2018369 .060
MX 6.2L MPI MIE 377/ V-8 Mercury -HEI 1999 - 2001 0L670000 - 0M299999 33-862029 .045
MX 6.2L MPI MIE 377/ V-8 Delco -HEI 2002 - 2007 0M300000 and up 33-8M2018369 .060
6.2L MPI MIE EC 377/ V-8 Delco -HEI 2008 - 2015 1A090000 - 2A455246 33-8M2018369 .060
MX 6.2L MPI Ski 377/ V-8 Delco -HEI 2002 - 2007 0M317000 - 0W689999 33-8M2018369 .060
MX 6.2L Blk Scorpion Ski 377/ V-8 Delco - HEI 2001 - 2002 0L670015 - 0M391599 33-862029 .045
MX 6.2L Blk Scorpion Ski 377/ V-8 Delco - HEI 2003 - 2007 0M391750 - 0W698432 33-8M2018369 .060
Scorpion 377 377/ V-8 Delco - HEI 2008 - 2015 0W698433 - 2A460138 33-8M2018369 .060
Scorpion 377 HO EC 377/ V-8 Delco - HEI 2009 - 2010 1A091488 - 1A092170 33-8M2018369 .060

325 MCM & MIE 427/ V-8 Thunderbolt 1969 - 1974 2278747 and up 33-813421 4 .035
330 MCM & MIE 454/ V-8 Mallory 1977 - 1981 4623115 - 6083144 33-898264001 .035
330 MCM & MIE 454/ V-8 Thunderbolt 1977 - 1981 4623115 - 6083144 33-813421 4 .035
330 454/ V-8 Thunderbolt IV 1982 - 1987 6083145 - 0B816540 33-898264001 .035
340 MIE 454/ V-8 Thunderbolt IV 1981 - 1987 5889914 - 0B788365 33-898264001 .035
350 MIE 454/ V-8 Thunderbolt 1974 - 1976 3780450 - 4623109 33-813421 4 .035
370 TRS 454/ V-8 Mallory 1978 - 1985 4179554 - 6721527 33-813421 4 .035

2019 US Accessories Guide 121
