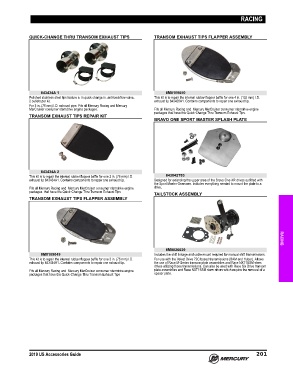

Page 214 - US ACCESSORIES GUIDE (2019)

RACING

QUICK-CHANGE THRU TRANSOM EXHAUST TIPS TRANSOM EXHAUST TIPS FLAPPER ASSEMBLY

843434A 1 8M0109050
Polished stainless steel tips feature a in.quick change in. anti‑backflow valve. This kit is to repair the internal rubber flapper baffle for one 4 in. (102 mm) I.D.
2 outlets per kit. exhaust tip 843426A1. Contains components to repair one exhaust tip.
For 3 in. (76 mm) I.D. exhaust pipe. Fits all Mercury Racing and Mercury
MerCruiser consumer sterndrive engine packages. Fits all Mercury Racing and Mercury MerCruiser consumer sterndrive engine
packages that have the Quick‑Change Thru Transom Exhaust Tips.
TRANSOM EXHAUST TIPS REPAIR KIT
BRAVO ONE SPORT MASTER SPLASH PLATE

843434A 2
This kit is to repair the internal rubber flapper baffle for one 3 in. (76 mm) I.D. 843042T03
exhaust tip 843434A1. Contains components to repair one exhaust tip. Designed for extending the upper area of the Bravo One XR drives outfitted with
the Sport Master Gearcase. Includes everything needed to mount the plate to a
Fits all Mercury Racing and Mercury MerCruiser consumer sterndrive engine drive.
packages that have the Quick‑Change Thru Transom Exhaust Tips
TAILSTOCK ASSEMBLY
TRANSOM EXHAUST TIPS FLAPPER ASSEMBLY

8M8026029 RACING
8M0109049 Includes the shift linkage and cable mount required for manual shift transmissions.
This kit is to repair the internal rubber flapper baffle for one 3 in. (76 mm) I.D. For use with the Velvet Drive 72C based transmissions (BAM and Huber). Allows
exhaust tip 843434A1. Contains components to repair one exhaust tip. the use of Race M‑Series transom plate assemblies and Race NXT1SSM stern
drives utilizing those transmissions. Can also be used with Race Six Drive transom
Fits all Mercury Racing and Mercury MerCruiser consumer sterndrive engine plate assemblies and Race NXT1SSM stern drives which require the removal of a
packages that have the Quick‑Change Thru Transom Exhaust Tips spacer plate.

2019 US Accessories Guide 201
