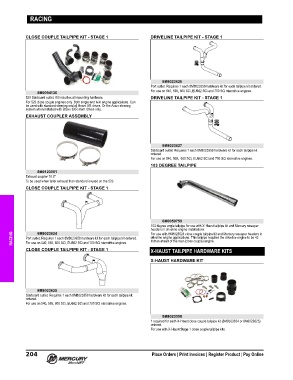

Page 217 - US ACCESSORIES GUIDE (2019)

RACING

CLOSE COUPLE TAILPIPE KIT - STAGE 1 DRIVELINE TAILPIPE KIT - STAGE 1

8M8023626
Port outlet. Requires 1 each 8M8023359 hardware kit for each tailpipe kit ordered.
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines.
8M0094136
520 Starboard outlet. Kit includles all mounting hardware. DRIVELINE TAILPIPE KIT - STAGE 1
For 520 close couple engines only. Both single and twin engine applications. Can
be used with standard steering and all Bravo XR drives. Or the Axius steering
system when installed with Bravo 3XR stern drives only.
EXHAUST COUPLER ASSEMBLY

8M8023627
Starboard outlet. Requires 1 each 8M8023359 hardware kit for each tailpipe kit
ordered.
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines.
103 DEGREE TAILPIPE
8M0123001
Exhaust coupler 10.5"
To be used when taller exhaust than standard is used on the 520
CLOSE COUPLE TAILPIPE KIT - STAGE 1

8M0059759
103 degree angle tailpipe for use with X‑Haust tailpipe kit and Mercury sweeper
headers in driveline engine installations.
8M8023624
RACING Port outlet. Requires 1 each 8M8023358 hardware kit for each tailpipe kit ordered. For use with 8M8023624 close couple tailpipe kit and Mercury sweeper headers in
driveline engine applications. This tailpipe requires the driveline engine to be 42
inches ahead of the rear (close couple) engine.
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines.
CLOSE COUPLE TAILPIPE KIT - STAGE 1 X-HAUST TAILPIPE HARDWARE KITS
X-HAUST HARDWARE KIT

8M8023625
Starboard outlet. Requires 1 each 8M8023358 hardware kit for each tailpipe kit
ordered.
For use on 540, 565, 600 SCi, EU662 SCi and 700 SCi sterndrive engines.

8M8023358
1 required for each X‑Haust close couple tailpipe kit (8M8023624 or 8M8023625)
ordered.
For use with X‑Haust Stage 1 close couple tailpipe kits.
