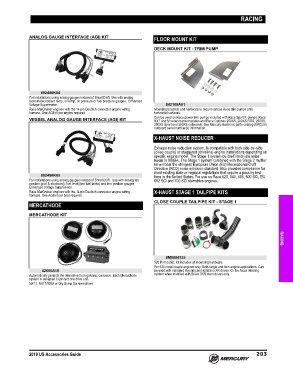

Page 216 - US ACCESSORIES GUIDE (2019)

RACING

ANALOG GAUGE INTERFACE (AGI) KIT
FLOOR MOUNT KIT
DECK MOUNT KIT - TRIM PUMP

892486K04
For installations using analog gauges instead of SmartCraft. Use with analog
tachometer,coolant temp, oil temp, oil pressure or fuel pressure gauges. Enhanced
Voltage Suppression. 842109A01
Race MerCruiser engines with the 14 pin Deutsch connector engine wiring Mounting brackets and hardware to mount various Race trim pumps onto
harness. One AGI kit per engine required. horizontal surfaces.
Can be used on Race power trim pumps included with Race Sport K‑planes, Race
VESSEL ANALOG GAUGE INTERFACE (AGI) KIT NXT and M series transom plates and Race Optimax 200XS, 200XS ROS, 250XS,
250XS Sport and 300XS outboards. See Mercury electronic parts catalog (EPC) for
outboard serial number(s) information.
X-HAUST NOISE REDUCER

Exhaust noise reduction system. Is compatible with both side‑by‑side
(close couple) or staggered (driveline) engine installations depending on
specific engine model. The Stage 1 system by itself limits idle noise
levels to 88dBA. The Stage 1 system combined with the Stage 2 muffler
kit will beat the stringent European Union (EU) Recreational Craft
Directive (RCD) noise emission standard. Also provides compliance for
most existing state or regional regulations that require a pass by test
892486K05 here in the United States. For use on Race 520, 540, 565, 600 SCi, EU
For installations using analog gauges instead of SmartCraft. Use with analog tab 662 SCi and 700 SCi sterndrive engines.
position (port & starboard), fuel level (two fuel tanks) and trim position gauges.
Enhanced Voltage Suppression.
Race MerCruiser engines with the 14 pin Deutsch connector engine wiring X-HAUST STAGE 1 TAILPIPE KITS
harness. One AGI kit per boat required.
CLOSE COUPLE TAILPIPE KIT - STAGE 1
MERCATHODE
MERCATHODE KIT

8M0094135 RACING
520 Port outlet. Kit includes all mounting hardware.
For 520 close couple engines only. Both single and twin engine applications. Can
42600A18 be used with standard steering and all Bravo XR drives. Or the Axius steering
Automatically protects the sterndrive from galvanic corrosion. Each Mercathode system when installed with Bravo 3XR stern drives only.
system is designed to protect one drive unit.
NXT1, NXT1/SSM or Dry Sump Six sterndrives.

2019 US Accessories Guide 203
