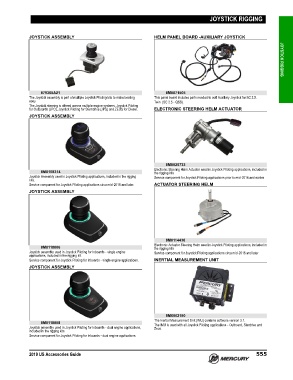

Page 568 - US ACCESSORIES GUIDE (2019)

JOYSTICK RIGGING

JOYSTICK ASSEMBLY HELM PANEL BOARD -AUXILIARY JOYSTICK JOYSTICK RIGGING

879365A21 8M0071505
The Joystick assembly is part of multiple Joystick Piloting kits to make boating This panel board includes parts needed to add Auxiliary Joystick for SC 2.5.
easy. Twin (SC 2.5 ‑ QSB).
The Joystick steering is offered across multiple engine systems. Joystick Piloting
for Outboards (JPO), Joystick Piloting for Sterndrive (JPS) and ZEUS for Diesel. ELECTRONIC STEERING HELM ACTUATOR
JOYSTICK ASSEMBLY

8M8025733
Electronic Steering Helm Actuator used in Joystick Piloting applications, included in
8M0108314 the rigging kits
Joystick Assembly used in Joystick Piloting applications, included in the rigging Service component for Joystick Piloting applications prior to mid‑2016 and earlier
kits.
Service component for Joystick Piloting applications circa mid‑2016 and later. ACTUATOR STEERING HELM
JOYSTICK ASSEMBLY

8M0114436
Electronic Actuator Steering Helm used in Joystick Piloting applications, included in
8M0118806 the rigging kits
Joystick assembly used in Joystick Piloting for Inboards ‑ single engine Service component for Joystick Piloting applications circa mid‑2016 and later
applications, included in the rigging kit.
Service component for Joystick Piloting for Inboards ‑ single engine applications. INERTIAL MEASUREMENT UNIT
JOYSTICK ASSEMBLY

8M6002180
The Inertial Measurement Unit (IMU) contains software version 3.1.
8M0118808
Joystick assembly used in Joystick Piloting for Inboards ‑ dual engine applications, The IMU is used with all Joystick Piloting applications ‑ Outboard, Sterdrive and
Zeus.
included in the rigging kits.
Service component for Joystick Piloting for Inboards ‑ dual engine applications.
