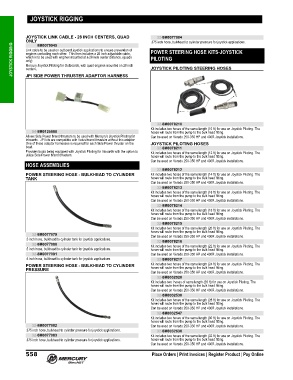

Page 571 - US ACCESSORIES GUIDE (2019)

JOYSTICK RIGGING

JOYSTICK LINK CABLE - 28 INCH CENTERS, QUAD 32-8M0077084
ONLY 8M0079945 .375 inch hose, bulkhead to cylinder pressure for joystick applications.
JOYSTICK RIGGING engines contacting each other. This item includes a 26 inch adjustable cable, POWER STEERING HOSE KITS-JOYSTICK
Link cable to be used on outboard joystick applications to ensure prevention of
which is to be used with engines mounted at a 28 inch center distance. (quads
PILOTING
only)
Mercury Joystick Piloting for Outboards, with quad engines mounted on 28 inch
JOYSTICK PILOTING STEERING HOSES
centers.
JPI SIDE POWER THRUSTER ADAPTOR HARNESS

32-8M0078210
Kit includes two hoses of the same length (10 ft) for use on Joystick Piloting. The
84-8M0125880 hoses will route from the pump to the bulk head fitting.
Allows Side Power brand thrusters to be used with Mercury's Joystick Piloting for Can be used on Verado 250‑350 HP and 400R Joystick installations.
Inboards. JPI kits are compatible with Vetus brand thrusters without this adaptor.
One of these adaptor harnesses is required for each Side Power thruster on the JOYSTICK PILOTING HOSES
boat. 32-8M0078211
Provides boats being equipped with Joystick Piloting for Inboards with the option to Kit includes two hoses of the same length (12 ft) for use on Joystick Piloting. The
utilize Side Power brand thrusters. hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
HOSE ASSEMBLIES
32-8M0078212
POWER STEERING HOSE - BULKHEAD TO CYLINDER Kit includes two hoses of the same length (14 ft) for use on Joystick Piloting. The
TANK hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078213
Kit includes two hoses of the same length (16 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078214
Kit includes two hoses of the same length (18 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0078215
Kit includes two hoses of the same length (20 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
32-8M0077079 Can be used on Verado 250‑350 HP and 400R Joystick installations.
.5 inch hose, bulkhead to cylinder tank for joystick applications. 32-8M0078216
32-8M0077080 Kit includes two hoses of the same length (22 ft) for use on Joystick Piloting. The
.5 inch hose, bulkhead to cylinder tank for joystick applications. hoses will route from the pump to the bulk head fitting.
32-8M0077081 Can be used on Verado 250‑350 HP and 400R Joystick installations.
.5 inch hose, bulkhead to cylinder tank for joystick applications. 32-8M0078217
POWER STEERING HOSE - BULKHEAD TO CYLINDER Kit includes two hoses of the same length (24 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
PRESSURE
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032520
Kit includes two hoses of same length (26 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032530
Kit includes two hoses of the same length (28 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
32-8M0032547
Kit includes two hoses of the same length (30 ft) for use on Joystick Piloting. The
hoses will route from the pump to the bulk head fitting.
32-8M0077082 Can be used on Verado 250‑350 HP and 400R Joystick installations.
.375 inch hose, bulkhead to cylinder pressure for joystick applications. 32-8M0032630
32-8M0077083 Kit includes two hoses of the same length (32 ft) for use on Joystick Piloting. The
.375 inch hose, bulkhead to cylinder pressure for joystick applications. hoses will route from the pump to the bulk head fitting.
Can be used on Verado 250‑350 HP and 400R Joystick installations.
558 Place Orders | Print Invoices | Register Product | Pay Online
