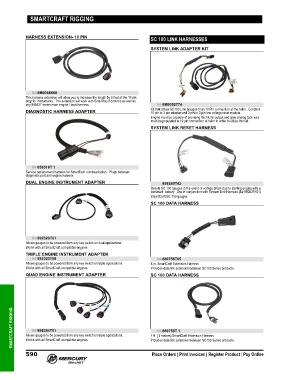

Page 603 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

HARNESS EXTENSION- 10 PIN
SC 100 LINK HARNESSES
SYSTEM LINK ADAPTER KIT

84-8M0058668
This harness extension will allow you to increase the length by 6 feet of the 10 pin
drop for instruments. The extension will work with Side Mount controls as well as
any 896537 series main engine / boat harness. 84-8M0052774
Kit that drives SC100 Link Gauges from 10 Pin connection at the helm. Contains
DIAGNOSTIC HARNESS ADAPTER 10 pin to 3 pin adapter and 3 pin to 3 pin low voltage reset module.
Engine must be capable of providing Tach Link output and gray analog tach wire
must be populated in 10 pin connection at helm in order to utilize this kit.
SYSTEM LINK RESET HARNESS

84-859316T 1
Service replacement harness for SmartTach communication. Plugs between
diagnostic port and engine harness
DUAL ENGINE INSTRUMENT ADAPTER 898289T42
Resets SC 100 gauges in the event of voltage drops due to starting engine with a
low/weak battery. Use in conjunction with System Link Harness (84‑892821K01)
SmartCraft SC 100 gauges
SC 100 DATA HARNESS

84-892323T01
Allows gauges to be powered from any key switch on dual applications
Works with all SmartCraft compatible engines
TRIPLE ENGINE INSTRUMENT ADAPTER
84-892323T08 84-880756T05
Allows gauges to be powered from any key switch on triple applications. 6 in. SmartCraft Extension Harness
Works with all SmartCraft compatible engines Provides data link extension between SC100 Series products.
QUAD ENGINE INSTRUMENT ADAPTER SC 100 DATA HARNESS

SMARTCRAFT RIGGING Allows gauges to be powered from any key switch on triple applications. 1 ft. (.3 meters) SmartCraft Extension Harness

84-898284T01
84-880756T 1
Works with all SmartCraft compatible engines.
Provides data link extension between SC100 Series products.
