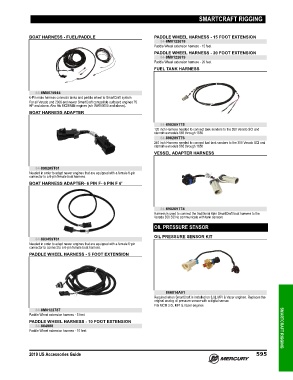

Page 608 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

BOAT HARNESS - FUEL/PADDLE PADDLE WHEEL HARNESS - 15 FOOT EXTENSION
84-8M0122618
Paddle Wheel extension harness ‑ 15 feet
PADDLE WHEEL HARNESS - 20 FOOT EXTENSION
84-8M0122619
Paddle Wheel extension harness ‑ 20 feet
FUEL TANK HARNESS

84-8M0075945
6‑Pin male harness connects tanks and paddle wheel to SmartCraft system
For all Verado and 2006 and newer SmartCraft compatible outboard engines 75
HP and above. Also fits MCM/MIE engines (s/n 0W650000 and above).
BOAT HARNESS ADAPTER

84-898289T75
120 inch Harness needed to connect tank senders to the 350 Verado SCI and
sterndrive models 565 through 1650
84-898289T76
240 inch Harness needed to connect fuel tank senders to the 350 Verado SCI and
sterndrive models 565 through 1650
VESSEL ADAPTER HARNESS

84-898285T01
Needed in order to adapt newer engines that are equipped with a female 6‑pin
connector to a 6‑pin female boat harness.
BOAT HARNESS ADAPTER- 6 PIN F- 6 PIN F 6'

84-898289T74
Harness is used to connect the traditional 6pin SmartCraft boat harness to the
Verado 350 SCI to communicate with tank sensors
OIL PRESSURE SENSOR

OIL PRESSURE SENSOR KIT
84-883459T01
Needed in order to adapt newer engines that are equipped with a female 6‑pin
connector to connect to a 6‑pin female boat harness.
PADDLE WHEEL HARNESS - 5 FOOT EXTENSION

866814A01
Required when SmartCraft is installed on 3.0L MPI & Vazer engines. Replaces the
original analog oil pressure sensor with a digital sensor.
Fits MCM 3.0L MPI & Vazer engines
84-8M0122787
Paddle Wheel extension harness ‑ 5 feet
PADDLE WHEEL HARNESS - 10 FOOT EXTENSION
84-864988
Paddle Wheel extension harness ‑ 10 feet SMARTCRAFT RIGGING

2019 US Accessories Guide 595
