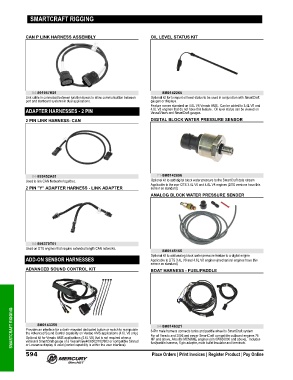

Page 607 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

CAN P LINK HARNESS ASSEMBLY OIL LEVEL STATUS KIT

84-891957K01 8M0142265
Link cable in connected between junction boxes to allow communication between Optional kit for to report oil level status to be used in conjunction with SmartCraft
port and starboard systems in dual applications. gauges or displays.
Feature comes standard on 4.6L V8 Verado AMS. Can be added to 3.4L V6 and
ADAPTER HARNESSES - 2 PIN 4.8L V8 engines that do not have this feature. Oil level status can be viewed on
VesselViews and SmartCraft gauges.
2 PIN LINK HARNESS- CAN DIGITAL BLOCK WATER PRESSURE SENSOR

84-893452A01 71-8M0142696
Used to link CAN Networks together. Optional kit to add digital block water pressure to the SmartCraft data stream
Applicable to the non‑DTS 3.4L V6 and 4.6L V8 engines (DTS versions have this
2 PIN "Y" ADAPTER HARNESS - LINK ADAPTER sensor as standard)
ANALOG BLOCK WATER PRESSURE SENDER

84-896370T01
Used on DTS engines that require extended length CAN networks.
8M0145165
Optional kit to add analog block water pressure feature to a digital engine
ADD-ON SENSOR HARNESSES Applicable to DTS 3.4L V6 and 4.6L V8 engines (mechanical engines have this
sensor as standard)
ADVANCED SOUND CONTROL KIT BOAT HARNESS - FUEL/PADDLE

SMARTCRAFT RIGGING Provides an interface for a dash‑mounted dedicated button or switch to manipulate 6‑Pin male harness connects tanks and paddle wheel to SmartCraft system

8M0143359
84-8M0146321
the Advanced Sound Control capability on Verdao AMS applications (4.6L V8 only)
For all Verado and 2006 and newer SmartCraft compatible outboard engines 75
Optional kit for Verado AMS applications (4.6L V8) that is not required when a
HP and above. Also fits MCM/MIE engines (s/n 0W650000 and above). Includes
version 9 SmartCraft gauge or a VesselView403/502/702/903 or compatible Simrad
or Lowrance display is used (control capability is within the user interface).
594 fuel/paddle harness, 6 pin adapter, male bullet insulator and terminals.
