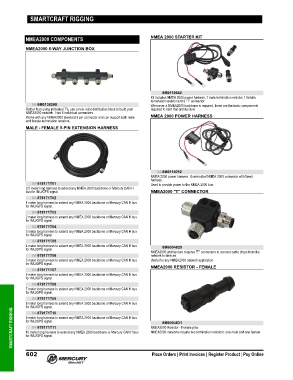

SMARTCRAFT RIGGING

NMEA2000 COMPONENTS NMEA 2000 STARTER KIT

NMEA2000 6-WAY JUNCTION BOX

8M0110642
Kit includes NMEA 2000 power harness, 1 male termination resistor, 1 female
termination resistor and a "T" connector
84-8M0138268 Whenever a NMEA2000 backbone is required, these are the basic components
Rather than using individual T's, use a rock‑solid distribution block to build your required to start that architecture
NMEA2000 network. Has 6 individual connectors.
Works with any NMEA2000 standard 5 pin connector and can support both male NMEA 2000 POWER HARNESS
and female termination resistors.
MALE - FEMALE 5-PIN EXTENSION HARNESS

84-8M0114012
NMEA 2000 power harness. Overmolded NMEA 2000 connector with fused
harness.
84-879171T01 Used to provide power to the NMEA 2000 bus.
0.5 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H
bus for IMU/GPS signal. NMEA2000 "T" CONNECTOR
84-879171T02
1 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus
for IMU/GPS signal.
84-879171T03
2 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus
for IMU/GPS signal.
84-879171T04
3 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus
for IMU/GPS signal.
84-879171T05
4 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus 8M6004829
for IMU/GPS signal.
NMEA2000 architecture requires "T" connectors to connect cable drops from the
84-879171T06 network to devices.
5 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus Useful for any NMEA2000 network application
for IMU/GPS signal.
NMEA2000 RESISTOR - FEMALE
84-879171T07
6 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus
for IMU/GPS signal.
84-879171T08
7 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus
for IMU/GPS signal.
84-879171T09
8 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus
for IMU/GPS signal.
SMARTCRAFT RIGGING 9 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus NMEA2000 Resistor ‑ Female pins
84-879171T10
for IMU/GPS signal.
8M6004831
84-879171T11
10 meter long harness to extend any NMEA 2000 backbone or Mercury CAN H bus
NMEA2000 networks require two termination resistors: one male and one female
for IMU/GPS signal.
