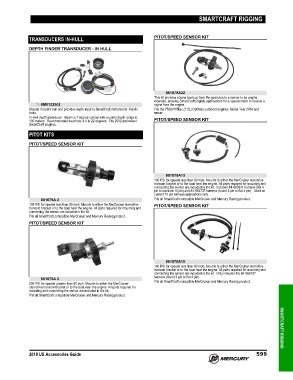

Page 612 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

TRANSDUCERS IN-HULL PITOT/SPEED SENSOR KIT

DEPTH FINDER TRANSDUCER - IN HULL

881879A22
This kit provides a hose hook up from the gearcase to a sensor to be engine
mounted, allowing SmartCraft (digital) applications for a speedometer to receive a
79-8M0122502 signal from the engine.
Mounts in boat's hull and provides depth input to SmartCraft instruments. Plastic Fits the 75/90/115hp. (1.5L) OptiMax outboard engines, Model Year 2004 and
body. newer.
In‑Hull depth transducer. Beam is 7 degree conical with a useful depth range to
100 meters. Recommended dead rise is 0 to 22 degrees. Fits 2002 and newer PITOT/SPEED SENSOR KIT
SmartCraft engines.
PITOT KITS

PITOT/SPEED SENSOR KIT

881879A13
100 PSI for speeds less than 80 mph. Mounts to either the MerCruiser sterndrive
transom bracket or to the boat near the engine. All parts required for mounting and
connecting the sensor are included in the kit. Includes 84‑863931 harness (flat 4
pin to transom 10 pin) and 84‑863737 harness (round 3 pin to flat 4 pin). Used on
current 10 pin harness applications only.
881879A 2 Fits all SmartCraft compatible MerCruiser and Mercury Racing product.
100 PSI for speeds less than 80 mph. Mounts to either the MerCruiser sterndrive PITOT/SPEED SENSOR KIT
transom bracket or to the boat near the engine. All parts required for mounting and
connecting the sensor are included in the kit.
Fits all SmartCraft compatible MerCruiser and Mercury Racing product.
PITOT/SPEED SENSOR KIT

881879A15
100 PSI for speeds less than 80 mph. Mounts to either the MerCruiser sterndrive
transom bracket or to the boat near the engine. All parts required for mounting and
connecting the sensor are included in the kit. Only includes the 84‑863737
harness (round 3 pin to flat 4 pin)
881879A 3
200 PSI for speeds greater than 80 mph. Mounts to either the MerCruiser Fits all SmartCraft compatible MerCruiser and Mercury Racing product.
sterndrive transom bracket or to the boat near the engine. All parts required for
mounting and connecting the sensor are included in the kit.
Fits all SmartCraft compatible MerCruiser and Mercury Racing product.

2019 US Accessories Guide 599 SMARTCRAFT RIGGING
