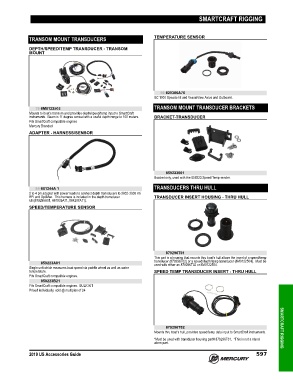

Page 610 - US ACCESSORIES GUIDE (2019)

SMARTCRAFT RIGGING

TRANSOM MOUNT TRANSDUCERS TEMPERATURE SENSOR

DEPTH/SPEED/TEMP TRANSDUCER - TRANSOM
MOUNT

56-820386A76
SC 1000 Speedo kit and VesselView Axius and Outboard.

79-8M0122503 TRANSOM MOUNT TRANSDUCER BRACKETS
Mounts to boat's transom and provides depth/speed/temp input to SmartCraft
instruments. Beam is 11 degree conical with a useful depth range to 100 meters. BRACKET-TRANSDUCER
Fits SmartCraft compatible engines
Mercury Branded
ADAPTER - HARNESS/SENSOR

859223001
Bracket only, used with the 859223 Speed/Temp sender.

84-881244A 1 TRANSDUCERS THRU HULL
2 to 4 pin adapter with power leads to connect depth transducers to 2002‑2005 V6
EFI and OptiMax. This harness is included in the depth transducer TRANSDUCER INSERT HOUSING - THRU HULL
kits(879295A01, 881933A11, 884207A11).
SPEED/TEMPERATURE SENSOR

879296T01
This part is a housing that mounts thru boat's hull allows the insert of a speed/temp
859223A01 transducer (879296T02) or a speed/depth/temp transducer (8M0122504). Must be
used with either an 879296T02 or 8M0122504.
Single unit which measures boat speed via paddle wheel as well as water
temperature. SPEED TEMP TRANSDUCER INSERT - THRU HULL
Fits SmartCraft compatible engines.
859223B21
Fits SmartCraft compatible engines. BULK KIT
Priced individually, sold @ multiples of 24

879296T02 SMARTCRAFT RIGGING
Mounts thru boat's hull, provides speed/temp data input to SmartCraft instruments.
*Must be used with transducer housing part# 879296T01. *This is not a stand
alone part.
