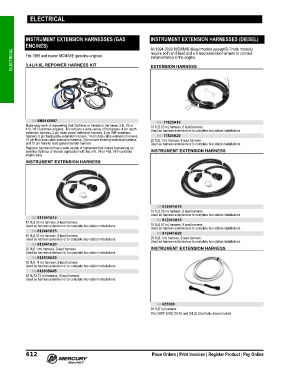

Page 625 - US ACCESSORIES GUIDE (2019)

ELECTRICAL

INSTRUMENT EXTENSION HARNESSES (GAS INSTRUMENT EXTENSION HARNESSES (DIESEL)
ENGINES) All 1994‑2000 MCM/MIE diesel models (except D‑Tronic models)
ELECTRICAL Fits 1986 and newer MCM/MIE gasoline engines. require both an 8 lead and a 9 lead extension harness to connect
instumentation to the engine.
3.4L/4.6L REPOWER HARNESS KIT
EXTENSION HARNESS

84-8M0145987 84- 17829A10
Make easy work of repowering that Oprtimax or Verado to the newer 3.4L V6 or 10 ft.(3.05 m) harness, 8 lead harness.
4.6L V8 Fourstroke engines. Kit contains a wide variety of harnesses: 4 pin depth Used as harness extension or to complete two station installations.
extension harness, 2 pin clean power extension harness, 2 pin WIF extension
harness, 6 pin fuel/paddle extension harness, 14 pin data cable extension harness, 84- 17829A20
10 pin blue data cable extension harness, 3 pin power steering extension harness 20 ft.(6.1 m) harness, 8 lead harness.
and 10 pin male to male gender bender harness Used as harness extension or to complete two station installations.
Repower harness kit has a wide variety of harnesses that makes repowering an
exisiting Optimax or Verado application with the 3.4L V6 or 4.6L V8 Fourstroke INSTRUMENT EXTENSION HARNESS
engine easy
INSTRUMENT EXTENSION HARNESS

84-812441A10
10 ft.(3.05 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.
84-812441A10
10 ft.(3.05 m) harness, 9 lead harness. 84-812441A15
Used as harness extension or to complete two station installations. 15 ft.(4.57 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.
84-812441A15
15 ft.(4.57 m) harness, 9 lead harness. 84-812441A20
Used as harness extension or to complete two station installations. 20 ft.(6.1 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.
84-812441A20
20 ft.(6.1 m) harness, 9 lead harness. INSTRUMENT EXTENSION HARNESS
Used as harness extension or to complete two station installations.
84-812835A30
30 ft.(9.14 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.
84-812835A45
45 ft.(13.72 m) harness, 9 lead harness.
Used as harness extension or to complete two station installations.

84-855390
20 ft.(6 m) harness
Fits (1997‑2000) D2.8L and D4.2L Electronic diesel models
